Parts for Force 25 HP (1996) Tiller Handle & Throttle Linkage

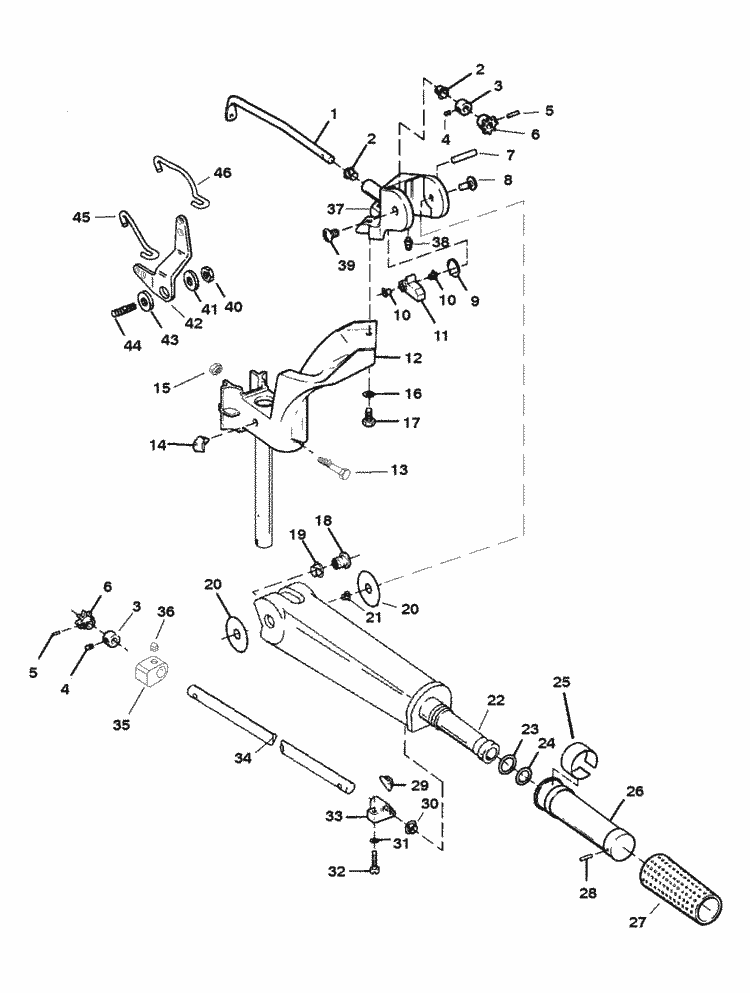

Engine Diagram

Ref. No. Part No. Description Manufacturer List Price Your Price Order
#1 F431838 SHAFT-MAGNETO CONTROL (1 required per assembly)
SHAFT-THROTTLE    O - Replaced by -851928
F431838This part has been superseded. SHAFT-THROTTLE O - Replaced by -851928
(more info)
    UnavailableUnavailable Parts
SHAFT-THROTTLE,NLA 851928
851928OEM Part 851928 - Throttle Shaft (more info) About Mercury Marine $26.00 $26.00 Add to shopping cart
10+ in stock. Explain stock levels
#2 23-26841 BUSHING (2 required per assembly)
BUSHING Note: must be ordered in multiples of 3 23-26841
23-26841OEM Part 23-26841 - Bushing - Priced Individually (more info) About Mercury Marine $5.40 $5.40 Add to shopping cart
10 in stock. Explain stock levels
#3 FA343178 RETAINER KIT-STEERING SHAFT (2 required per assembly)
RETAINER KIT,NLA FA343178
FA343178OEM Part FA343178 - Retainer Kit, NLA (more info) About Mercury Marine $14.21 Add to shopping cart
1 in stock. Explain stock levels
#4 10-832794 SCREW-SET (.250-28 X .250) (2 required per assembly)
SET SCREW (.250-2 10-832794 10-832794
10-832794OEM Part 10-832794 - Screw -set (more info) About Mercury Marine $9.20 $9.20 Add to shopping cart
Available to order:
Usually ships
within 8 days
#5 17-29908 PIN-ROLL (2 required per assembly)
PIN 17-29908
17-29908OEM Part 17-29908 - Pin -roll - Priced Individually (more info) About Mercury Marine $2.15 $2.15 Add to shopping cart
Available to order:
Usually ships
within 8 days
#6 43-818009 1 GEAR-STEERING SHAFT (2 required per assembly)
GEAR-STEERING,NLA 43-818009  1 43-818009  1
43-818009 1OEM Part 43-818009 1 - Steering Gear (more info) About Mercury Marine $20.00 $20.00 Add to shopping cart
10+ in stock. Explain stock levels
#7 17-F1807 PIN-GROOVE (1 required per assembly)
PIN-GROOVED,NLA 17-F1807
17-F1807OEM Part 17-F1807 - Pin -grooved, NLA (more info) About Mercury Marine $4.00 $4.00 Add to shopping cart
10+ in stock. Explain stock levels
#8 10-823595 SCREW-PIVOT (SPECIAL) (1 required per assembly)
SCREW,NLA 10-823595
10-823595OEM Part 10-823595 - Screw, NLA (more info) About Mercury Marine $11.00 $11.00 Add to shopping cart
10+ in stock. Explain stock levels
#9 24-F286868 SPRING-STEERING HANDLE STOP (1 required per assembly)
SPRING,NLA 24-F286868
24-F286868OEM Part 24-F286868 - Spring, NLA (more info) About Mercury Marine $6.00 $6.00 Add to shopping cart
10+ in stock. Explain stock levels
#10 23-26856 BUSHING (2 required per assembly)
BUSHING 23-26856
23-26856OEM Part 23-26856 - Bushing (more info) About Mercury Marine $2.90 $2.90 Add to shopping cart
10+ in stock. Explain stock levels
#11 F286490T STOP-STEERING HANDLE (1 required per assembly)
STOP,NLA F286490T
F286490TOEM Part F286490T - Stop, NLA (more info) About Mercury Marine $20.00 $20.00 Add to shopping cart
10+ in stock. Explain stock levels

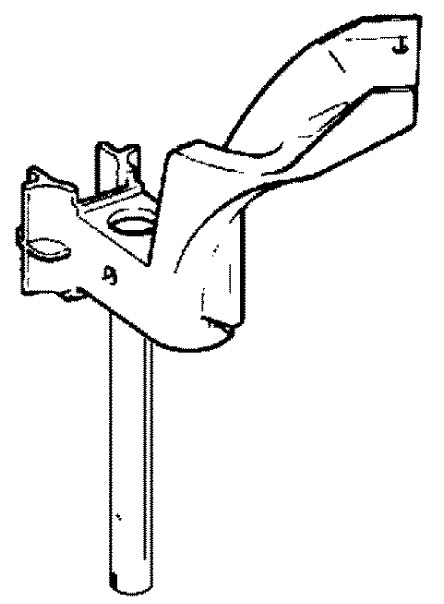

#12 819914A 4 ARM/KINGPIN ASSY-STEERING (PAINTED) (1 required per assembly)
ARM/KINGPIN ASSY  O - Replaced by -835373A 2
819914A 4This part has been superseded. ARM/KINGPIN ASSY O - Replaced by -835373A 2
(more info)
    UnavailableUnavailable Parts
BRKT ASSY-FORCE   O - Replaced by -835373A11
835373A 2This part has been superseded. BRKT ASSY-FORCE O - Replaced by -835373A11
(more info)
    UnavailableUnavailable Parts
BRKT ASY-STEER/G,NLA 835373A11 835373A11
835373A11OEM Part 835373A11 - Bracket Assembly - Steer/G, NLA (more info) About Mercury Marine $115.00 $115.00 Add to shopping cart
10+ in stock. Explain stock levels
#13 10-828815 SCREW (.250-20 X 1.750) (1 required per assembly)
SCREW,NLA 10-828815
10-828815OEM Part 10-828815 - Screw, NLA (more info) About Mercury Marine $2.50 $2.50 Add to shopping cart
1 in stock. Explain stock levels
#14 19-F286539 BUMPER (1 required per assembly)
BUMPER 19-F286539
19-F286539OEM Part 19-F286539 - Plug (more info) About Mercury Marine $4.50 $4.50 Add to shopping cart
Available to order:
Usually ships
within 8 days
#15 11-814101 NUT (.250-20) (1 required per assembly)
NUT (.250-20) Sta 11-814101
11-814101OEM Part 11-814101 - Nut (more info) About Mercury Marine $1.90 $1.90 Add to shopping cart
Available to order:
Usually ships
within 8 days
#16 13-72521 LOCKWASHER (.312 INTERNAL) (2 required per assembly)
LOCKWASHER Intern 13-72521
13-72521OEM Part 13-72521 - LockWasher (more info) About Mercury Marine $1.10 $1.10 Add to shopping cart
Available to order:
Usually ships
within 8 days
#17 10-38837 SCREW (.312-18 X 1.125) (2 required per assembly)
SCREW (.312-18 x 10-38837 10-38837
10-38837OEM Part 10-38837 - Screw - Priced Individually (more info) About Mercury Marine $2.10 $2.10 Add to shopping cart
6 in stock. Explain stock levels
#18 F286224 1 INSERT-STEERING HANDLE PIVOT (1 required per assembly)
INSERT,NLA F286224-1
F286224-1OEM Part F286224-1 - Insert, NLA (more info) About Mercury Marine $12.50 $12.50 Add to shopping cart
10+ in stock. Explain stock levels
#19 23-812707 BUSHING (1 required per assembly)
BUSHING 23-812707 23-812707
23-812707OEM Part 23-812707 - Bushing (more info) About Mercury Marine $5.60 $5.60 Add to shopping cart
7 in stock. Explain stock levels
#20 12-F286220 WASHER-STEERING HANDLE (2 required per assembly)
WASHER Steering H 12-F286220
12-F286220OEM Part 12-F286220 - Washer (more info) About Mercury Marine $2.10 $2.10 Add to shopping cart
10+ in stock. Explain stock levels
#22 819279T HANDLE-STEERING (PAINTED) (1 required per assembly)
HANDLE-GRAPH GRAY O - Replaced by -819279T 3
819279TThis part has been superseded. HANDLE-GRAPH GRAY O - Replaced by -819279T 3
(more info)
    UnavailableUnavailable Parts
HANDLE-STEER-ST/,NLA 819279T 3
819279T 3OEM Part 819279T 3 - Steering Handle -st/, NLA (more info) About Mercury Marine $25.00 $25.00 Add to shopping cart
10+ in stock. Explain stock levels
#23 25-21836 O RING (LARGE) (1 required per assembly)
O-RING (.796 x .1 25-21836 25-21836
25-21836OEM Part 25-21836 - O-Ring (more info) About Mercury Marine $1.30 $1.30 Add to shopping cart
5 in stock. Explain stock levels
O-Ring (5/PKG) 18-7153-9
18-7153-9OEM Match 18-7153-9 - (PK5) O-Ring 25-25439 (more info)
Replaces OEM #3852565
About Sierra Marine $9.95 $6.22 Add to shopping cart
2 in stock. Explain stock levels
#24 25-38101 O RING (SMALL) (1 required per assembly)
O-RING (.674 x .1 25-38101
25-38101OEM Part 25-38101 - O-Ring - Priced Individually (more info) About Mercury Marine $1.40 $1.40 Add to shopping cart
10+ in stock. Explain stock levels
#25 37-F712894 DECAL-SPEED/SHIFT INDICATOR (1 required per assembly)
DECAL-INDICATOR   O NLA
37-F712894 DECAL-INDICATOR O NLA
(more info)
    UnavailableUnavailable Parts
#26 828406A 1 HANDLE/GRIP ASSEMBLY-THROTTLE (1 required per assembly)
HANDLE/GRIP ASSY,NLA 828406A 1
828406A 1OEM Part 828406A 1 - Handle/Grip Assembly, NLA (more info) About Mercury Marine $50.00 $50.00 Add to shopping cart
10+ in stock. Explain stock levels
#27 828406 GRIP-THROTTLE/STEERING HANDLE (1 required per assembly)
GRIP,NLA 828406
828406OEM Part 828406 - Grip, NLA (more info) About Mercury Marine $18.75 $18.75 Add to shopping cart
10+ in stock. Explain stock levels
#28 17-72255 PIN-ROLL (1 required per assembly)
PIN-ROLL,NLA 17-72255
17-72255OEM Part 17-72255 - Pin -roll, NLA (more info) About Mercury Marine $3.00 $3.00 Add to shopping cart
10+ in stock. Explain stock levels
#29 819227 WEDGE-STEERING HANDLE (1 required per assembly)
WEDGE,NLA 819227
819227OEM Part 819227 - Wedge, NLA (more info) About Mercury Marine $19.38 Add to shopping cart
1 in stock. Explain stock levels
#30 23-97896 BUSHING (1 required per assembly)
BUSHING 23-97896
23-97896OEM Part 23-97896 - Bushing (more info) About Mercury Marine $3.00 $2.03 Add to shopping cart
10+ in stock. Explain stock levels
#31 13-F8058 LOCKWASHER (#10 INTERNAL) (2 required per assembly)
LOCKWASHER 13-F8058
13-F8058OEM Part 13-F8058 - LockWasher, NLA (more info) About Mercury Marine $0.86 $0.86 Add to shopping cart
Available to order:
Usually ships
within 8 days
#32 10-F1829 SCREW (#10-24 X .875) (2 required per assembly)
SCREW-SS,NLA 10-F1829
10-F1829OEM Part 10-F1829 - Screw -ss, NLA (more info) About Mercury Marine $1.50 $1.50 Add to shopping cart
10+ in stock. Explain stock levels
#33 F487816 1 BEARING-STEERING HANDLE (1 required per assembly)
BEARING,NLA F487816-1 F487816-1
F487816-1OEM Part F487816-1 - Bearing, NLA (more info) About Mercury Marine $18.00 $18.00 Add to shopping cart
10+ in stock. Explain stock levels
#34 819160 SHAFT-STEERING HANDLE (1 required per assembly)
SHAFT-STEERING    O NLA
819160 SHAFT-STEERING O NLA
(more info)
    UnavailableUnavailable Parts
#35 832759 STOP-THROTTLE (1 required per assembly)
STOP-THROTTLE,NLA 832759
832759OEM Part 832759 - Throttle Stop, NLA (more info) About Mercury Marine $36.00 $36.00 Add to shopping cart
10+ in stock. Explain stock levels
#37 817751A 6 BRACKET ASSEMBLY-STEERING (PAINTED) (1 required per assembly)
BRKT ASY-GRAP/GRA O - Replaced by -817751A12
817751A 6This part has been superseded. BRKT ASY-GRAP/GRA O - Replaced by -817751A12
(more info)
    UnavailableUnavailable Parts
BRACKET ASSEMBLY 817751A12
817751A12OEM Part 817751A12 - Bracket Assembly - Steel/GR (more info) About Mercury Marine $119.42 $119.42 Add to shopping cart
Available to order:
Usually ships
within 8 days
#38 22-F523274 FITTING-GREASE (1 required per assembly)
FITTING-GREASE,NLA 22-F523274
22-F523274OEM Part 22-F523274 - Grease Fitting, NLA (more info) About Mercury Marine $9.00 $9.00 Add to shopping cart
10+ in stock. Explain stock levels
#39 10-823594 SCREW-PIVOT (SPECIAL) (1 required per assembly)
SCREW,NLA 10-823594
10-823594OEM Part 10-823594 - Screw, NLA (more info) About Mercury Marine $16.30 $16.30 Add to shopping cart
4 in stock. Explain stock levels
#40 11-35814 NUT (.312-24) (1 required per assembly)
NUT @5            O - Replaced by 11-826709 11
11-35814This part has been superseded. NUT @5 O - Replaced by 11-826709 11
(more info)
    UnavailableUnavailable Parts
NUT (.312-24) Sta 11-826709 11 11-826709 11
11-826709 11OEM Part 11-826709 11 - Nut - Priced Individually (more info) About Mercury Marine $3.60 $3.60 Add to shopping cart
Available to order:
Usually ships
within 8 days
#41 12-F286282 WASHER (SPECIAL) (1 required per assembly)
WASHER            O NLA
12-F286282 WASHER O NLA
(more info)
    UnavailableUnavailable Parts
#42 819148 LEVER-MAGNETO CONTROL (1 required per assembly)
LEVER,NLA 819148
819148OEM Part 819148 - Lever (more info) About Mercury Marine $8.00 $8.00 Add to shopping cart
10+ in stock. Explain stock levels
#43 23-F183813 BEARING-CONTROL LEVER (1 required per assembly)
BEARING,NLA 23-F183813
23-F183813OEM Part 23-F183813 - Bearing, NLA (more info) About Mercury Marine $5.00 $5.00 Add to shopping cart
10+ in stock. Explain stock levels
#44 16-F286440 STUD (.312-24 X 1.250) (1 required per assembly)
STUD,NLA 16-F286440
16-F286440OEM Part 16-F286440 - Stud, NLA (more info) About Mercury Marine $6.00 $6.00 Add to shopping cart
10+ in stock. Explain stock levels
#45 826846 LINK-MAGNETO SHAFT (1 required per assembly)
LINK,NLA 826846
826846OEM Part 826846 - Link, NLA (more info) About Mercury Marine $9.00 $9.00 Add to shopping cart
10+ in stock. Explain stock levels
#46 824142T LINK-THROTTLE CAM (1 required per assembly)
LINK-THROTTLE,NLA 824142T
824142TOEM Part 824142T - Throttle Link, NLA (more info) About Mercury Marine $6.00 $6.00 Add to shopping cart
10+ in stock. Explain stock levels
#- 800-819240A 3 POWERHEAD ASS'Y (- required per assembly)
POWERHEAD ASSY    O - Replaced by 800-819240A 6
800-819240A 3This part has been superseded. POWERHEAD ASSY O - Replaced by 800-819240A 6
(more info)
    UnavailableUnavailable Parts
POWERHEAD ASSY    O NLA 800-819240A 6
800-819240A 6 POWERHEAD ASSY O NLA
(more info)
    UnavailableUnavailable Parts
