Parts for Force 15 HP (1996) Carburetor (9.9 Hp Model) (1300-852406T)

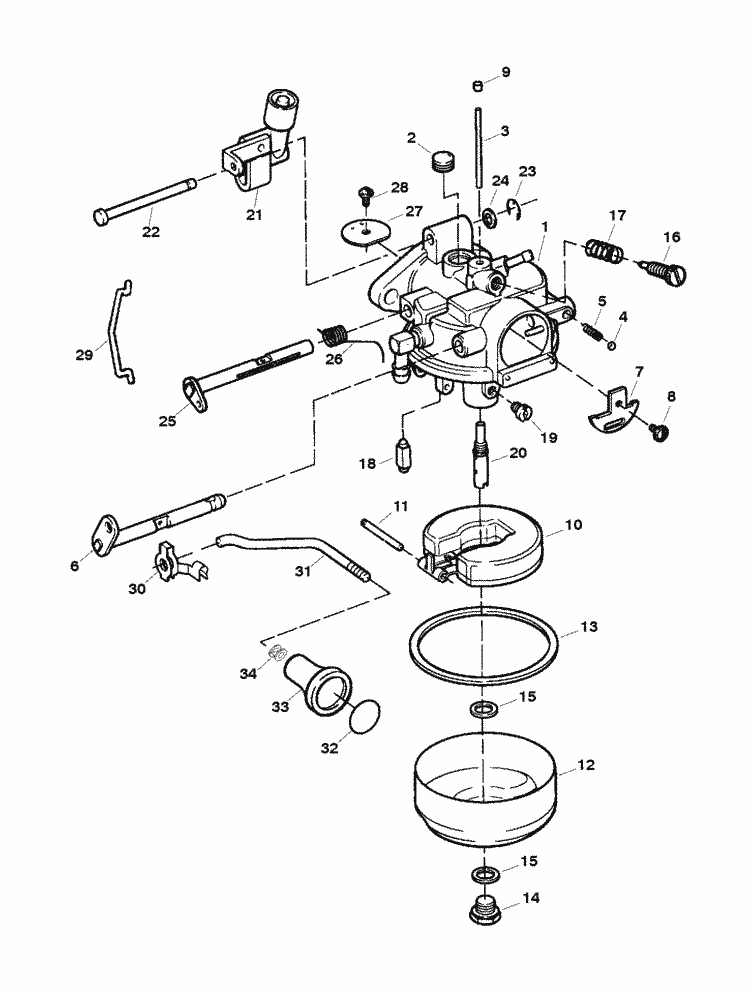

Engine Diagram

Ref. No. Part No. Description Manufacturer List Price Your Price Order
#1 1300-852406T CARBURETOR (HO-6A) (1 required per assembly) (9.9 HP MODEL)
CARBURETOR KIT    O NLA
1300-852406T CARBURETOR KIT O NLA
(more info)
    UnavailableUnavailable Parts
#2 19-FO2531 PLUG-By Pass Chamber (1 required per assembly)
PLUG-WELCH        O - Replaced by 19-20011
19-FO2531This part has been superseded. PLUG-WELCH O - Replaced by 19-20011
(more info)
    UnavailableUnavailable Parts

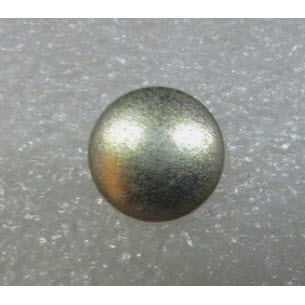

WELCH PLUG 19-20011
19-20011OEM Part 19-20011 - Plug - Welch - Priced Individually (more info) About Mercury Marine $3.70 $3.70 Add to shopping cart
10+ in stock. Explain stock levels
#3 F10235 TUBE-By Pass (1 required per assembly)
TUBE-BYPASS,NLA F10235 F10235
F10235OEM Part F10235 - Bypass Tube, NLA (more info) About Mercury Marine $16.00 $16.00 Add to shopping cart
10+ in stock. Explain stock levels
#4 FO4784 BALL-Choke Friction (1 required per assembly)
BALL              O NLA
FO4784 BALL O NLA
(more info)
    UnavailableUnavailable Parts
#5 FO8805 SPRING-Choke Friction (1 required per assembly)
SPRING,NLA FO8805
FO8805OEM Part FO8805 - Spring, NLA (more info) About Mercury Marine $5.00 $5.00 Add to shopping cart
10+ in stock. Explain stock levels

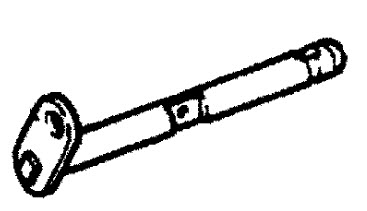

#6 FO15736 SHAFT-Choke (1 required per assembly)
SHAFT AND LEVER,NLA FO15736
FO15736OEM Part FO15736 - Shaft And Lever (more info) About Mercury Marine $10.00 $10.00 Add to shopping cart
10+ in stock. Explain stock levels
#7 F10236 SHUTTER-Choke (1 required per assembly)
SHUTTER           O NLA
F10236 SHUTTER O NLA
(more info)
    UnavailableUnavailable Parts
#8 854208 SCREW-Choke Shutter (1 required per assembly)
SCREW             O - Replaced by 10-803176
854208This part has been superseded. SCREW O - Replaced by 10-803176
(more info)
    UnavailableUnavailable Parts

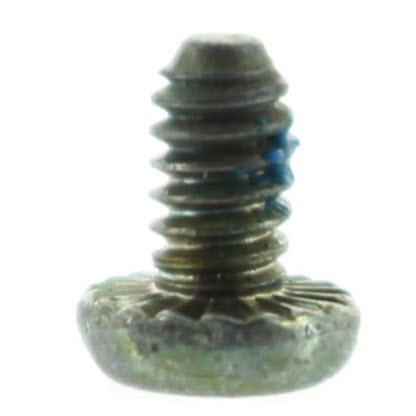

SCREW-W/PATCH 10-803176 10-803176
10-803176OEM Part 10-803176 - Screw (more info) About Mercury Marine $2.30 $2.30 Add to shopping cart
Available to order:
Usually ships
within 8 days

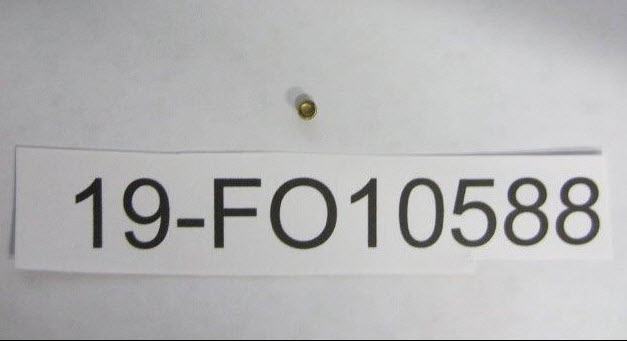

#9 19-FO10588 PLUG-Body Channel (1 required per assembly)
PLUG 19-FO10588
19-FO10588OEM Part 19-FO10588 - Plug -cup - Priced Individually (more info) About Mercury Marine $5.20 $5.20 Add to shopping cart
10+ in stock. Explain stock levels

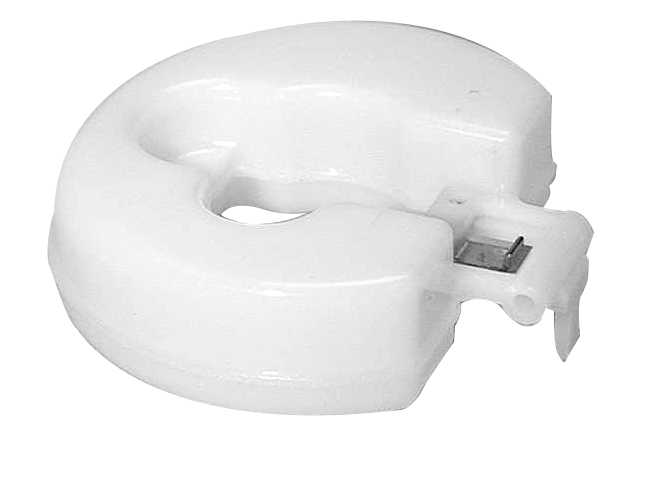

#10 F10346 FLOAT-Fuel Bowl (1 required per assembly)
FO13554 F10346 F10346
F10346OEM Part F10346 - Float - Carburetor (more info) About Mercury Marine $26.00 $26.00 Add to shopping cart
1 in stock. Explain stock levels
FLOAT-CARB        O - Replaced by -891730A01
FO13554This part has been superseded. FLOAT-CARB O - Replaced by -891730A01
(more info)
    UnavailableUnavailable Parts

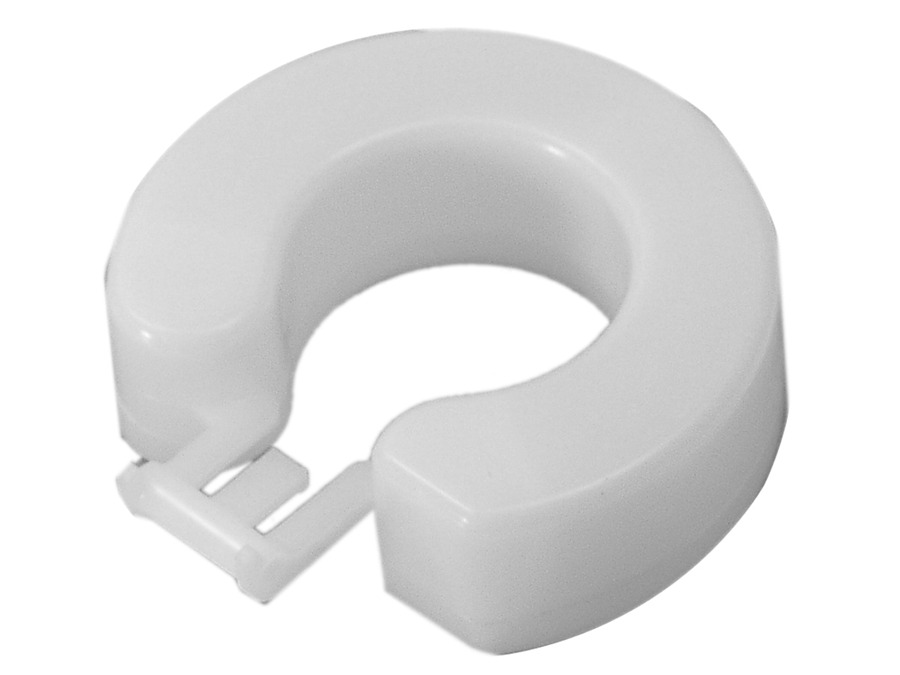

FLOAT KIT 891730A01 891730A01
891730A01OEM Part 891730A01 - Float (more info) About Mercury Marine $26.00 $26.00 Add to shopping cart
3 in stock. Explain stock levels

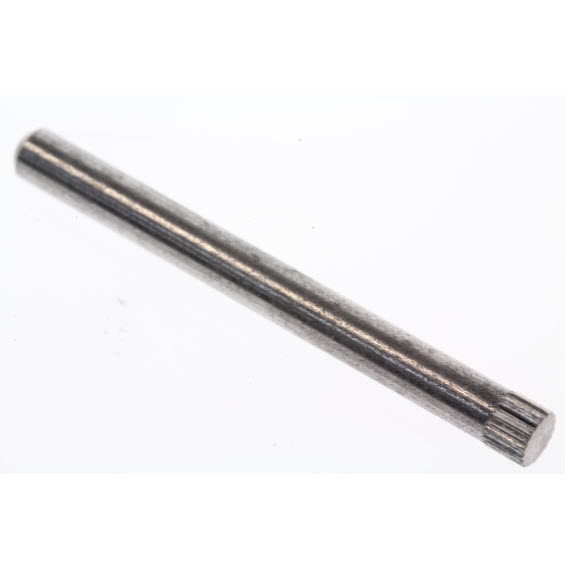

#11 17-FO13944 PIN-Float (1 required per assembly)
PIN 17-FO13944
17-FO13944OEM Part 17-FO13944 - Carburetor Float Pin (more info) About Mercury Marine $3.90 $3.90 Add to shopping cart
1 in stock. Explain stock levels

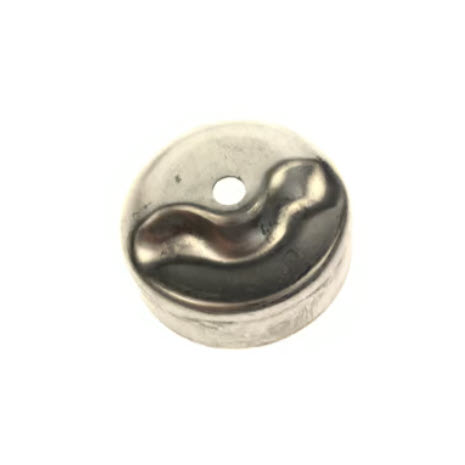

#12 FO15366 BOWL-Fuel (1 required per assembly)
BOWL Fuel FO15366
FO15366OEM Part FO15366 - Fuel Bowl (more info) About Mercury Marine $24.92 $24.92 Add to shopping cart
Available to order:
Usually ships
within 8 days

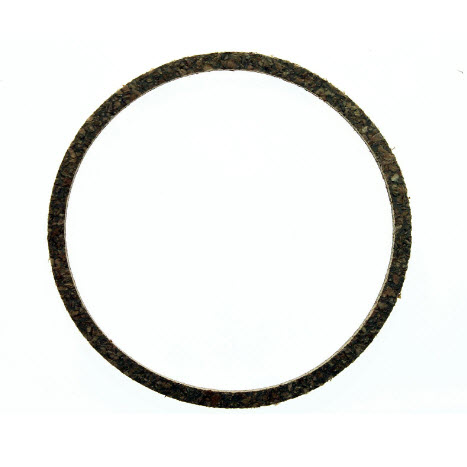

#13 27-FO15623 GASKET-Fuel Bowl (1 required per assembly)
GASKET Note: must be ordered in multiples of 5 27-FO15623 27-FO15623
27-FO15623OEM Part 27-FO15623 - Gasket - Priced Individually (more info) About Mercury Marine $2.50 $2.50 Add to shopping cart
10+ in stock. Explain stock levels
#14 1399-5128 SCREW-Fuel Bowl (1 required per assembly)
SCREW,NLA 1399-5128
1399-5128OEM Part 1399-5128 - Screw, NLA (more info) About Mercury Marine $19.38 Add to shopping cart
3 in stock. Explain stock levels
#15 27-FO2510 GASKET-Fuel Bowl (2 required per assembly)
GASKET Fuel Bowl 27-FO2510 27-FO2510
27-FO2510OEM Part 27-FO2510 - Gasket - Priced Individually (more info) About Mercury Marine $1.60 $1.60 Add to shopping cart
4 in stock. Explain stock levels
#16 854209 NEEDLE-Idle Mixture (1 required per assembly)
NEEDLE-IDLE MIX,NLA 854209 854209
854209OEM Part 854209 - Needle - Idle Mix, NLA (more info) About Mercury Marine $15.00 $15.00 Add to shopping cart
10+ in stock. Explain stock levels
#17 24-27160 SPRING-Idle Mixture Needle (1 required per assembly)
SPRING Note: must be ordered in multiples of 3 24-27160
24-27160OEM Part 24-27160 - Spring - Priced Individually (more info) About Mercury Marine $2.70 $2.70 Add to shopping cart
10+ in stock. Explain stock levels
#18 F10265 NEEDLE-Inlet (1 required per assembly) (NOTE: DO NOT REMOVE INLET SEAT)
NEEDLE Inlet F10265 F10265
F10265OEM Part F10265 - Inlet Needle (more info) About Mercury Marine $11.83 $11.83 Add to shopping cart
7 in stock. Explain stock levels

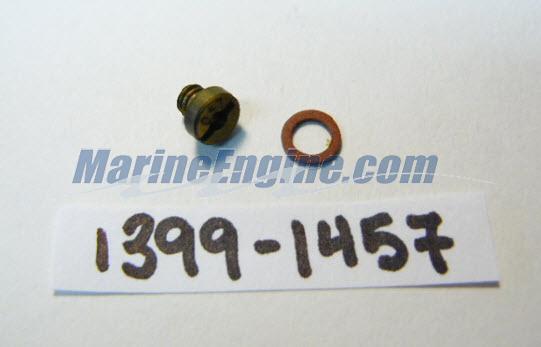

#19 1399-1457 JET-Main (.057) (0 - 2500 Ft.) (1 required per assembly)
JET-.057          O NLA 1399-1457
1399-1457 JET-.057 O NLA
(more info)
    UnavailableUnavailable Parts
#19 1399-1655 JET-Main (.055) (2500 - 5000 Ft.) (OPT required per assembly)
JET-.055,NLA 1399-1655 1399-1655
1399-1655OEM Part 1399-1655 - Jet -.055, NLA (more info) About Mercury Marine $15.00 $15.00 Add to shopping cart
10+ in stock. Explain stock levels

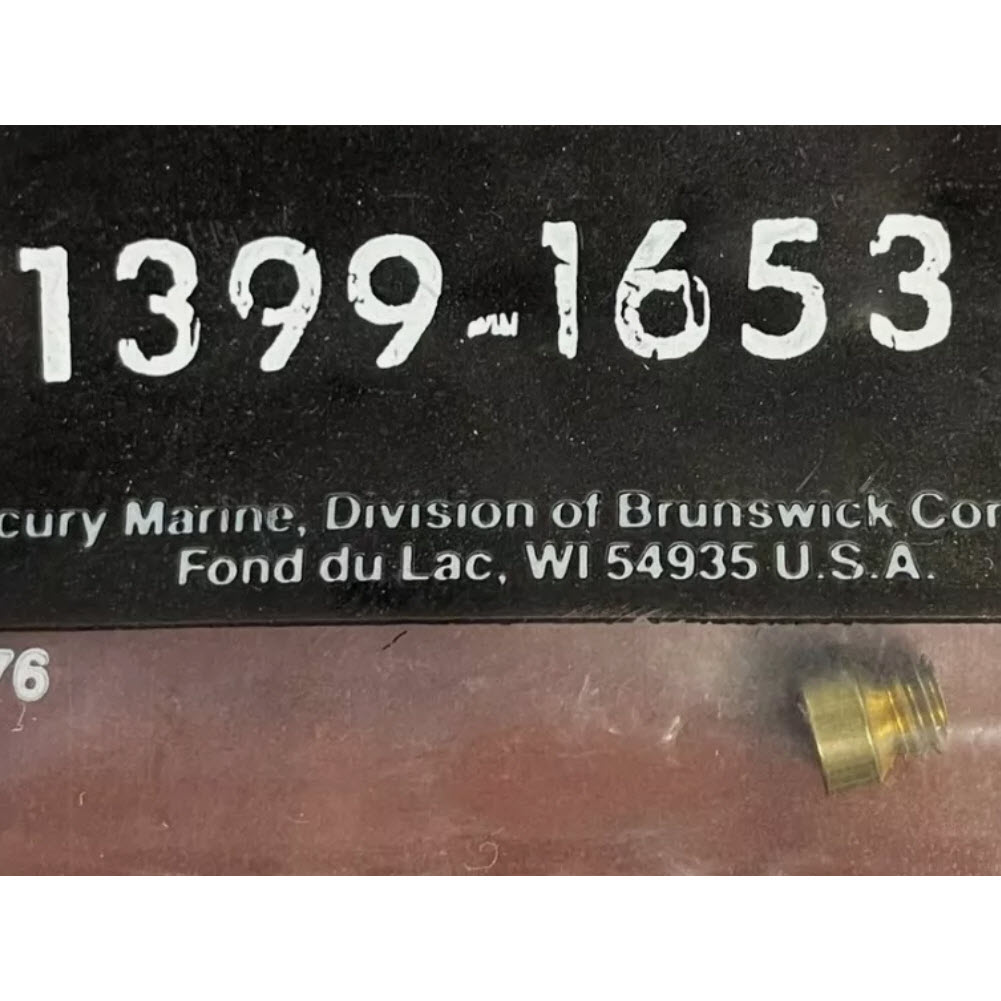

#19 1399-1653 JET-Main (.053) (5000 - 7500 Ft.) (OPT required per assembly)
JET-.053,NLA 1399-1653
1399-1653OEM Part 1399-1653 - Jet -.053, NLA (more info) About Mercury Marine $12.50 $12.50 Add to shopping cart
10+ in stock. Explain stock levels
#19 FO11764 JET-Main (.051) (7500 - 10000 Ft.) (OPT required per assembly)
JET-.051,NLA FO11764
FO11764OEM Part FO11764 - Jet -.051, NLA (more info) About Mercury Marine $10.00 $10.00 Add to shopping cart
10+ in stock. Explain stock levels

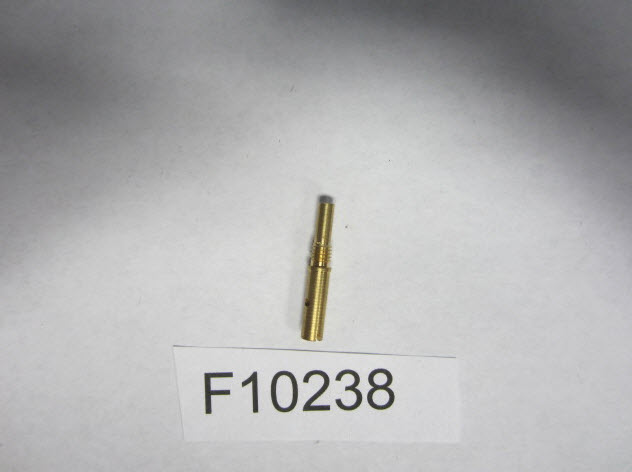

#20 F10238 NOZZLE-Main (1 required per assembly)
NOZZLE F10238
F10238OEM Part F10238 - Nozzle, NLA (more info) About Mercury Marine $17.50 $17.50 Add to shopping cart
10+ in stock. Explain stock levels
#21 F10290 LINKAGE-Throttle Cam Follower (1 required per assembly)
BRACKET ASSY      O NLA
F10290 BRACKET ASSY O NLA
(more info)
    UnavailableUnavailable Parts
#22 F10240 SHAFT-Linkage (1 required per assembly)
SHAFT,NLA F10240
F10240OEM Part F10240 - Shaft, NLA (more info) About Mercury Marine $8.00 $8.00 Add to shopping cart
10+ in stock. Explain stock levels
#23 809446 E RING-Linkage Shaft (1 required per assembly)
E RING,NLA 809446
809446OEM Part 809446 - E-Ring, NLA (more info) About Mercury Marine $7.00 $7.00 Add to shopping cart
10+ in stock. Explain stock levels
#24 F10242 WASHER-Linkage Shaft (1 required per assembly)
WASHER,NLA F10242
F10242OEM Part F10242 - Washer, NLA (more info) About Mercury Marine $2.50 $2.50 Add to shopping cart
10+ in stock. Explain stock levels
#25 F10339 SHAFT-Throttle (1 required per assembly)
SHAFT AND LEVER   O NLA
F10339 SHAFT AND LEVER O NLA
(more info)
    UnavailableUnavailable Parts

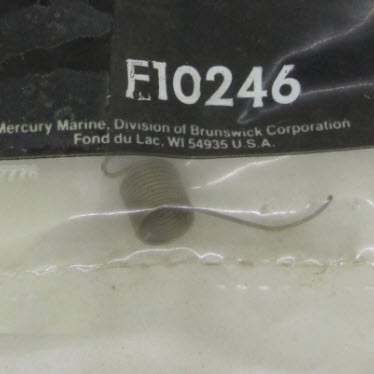

#26 24-F10246 SPRING-Throttle Shaft (1 required per assembly)
SPRING Throttle S 24-F10246
24-F10246OEM Part 24-F10246 - Spring (more info) About Mercury Marine $2.40 $2.40 Add to shopping cart
1 in stock. Explain stock levels
#27 F10354 SHUTTER-Throttle (1 required per assembly)
SHUTTER,NLA F10354
F10354OEM Part F10354 - Shutter, NLA (more info) About Mercury Marine $2.50 $2.50 Add to shopping cart
10+ in stock. Explain stock levels
#28 809441 SCREW-Shutter (1 required per assembly)
SCREW Shutters 10-809441 10-809441
10-809441OEM Part 10-809441 - Screw (more info) About Mercury Marine $4.90 $4.90 Add to shopping cart
Available to order:
Usually ships
within 8 days
#29 809443 LINK-Throttle (1 required per assembly)
WIRE,NLA 809443
809443OEM Part 809443 - Wire, NLA (more info) About Mercury Marine $7.00 $7.00 Add to shopping cart
10+ in stock. Explain stock levels
#30 F341384 RETAINER-Choke Rod (1 required per assembly)
RETAINER          O - Replaced by -830569
F341384This part has been superseded. RETAINER O - Replaced by -830569
(more info)
    UnavailableUnavailable Parts
RETAINER          O NLA
830569 RETAINER O NLA
(more info)
    UnavailableUnavailable Parts

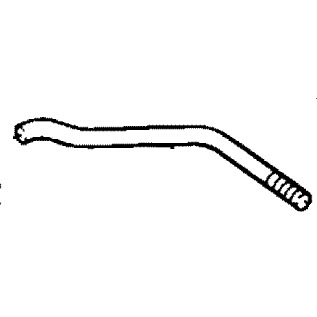

#31 819348 ROD-Choke (1 required per assembly)
ROD-CHOKE         O NLA
819348 ROD-CHOKE O NLA
(more info)
    UnavailableUnavailable Parts

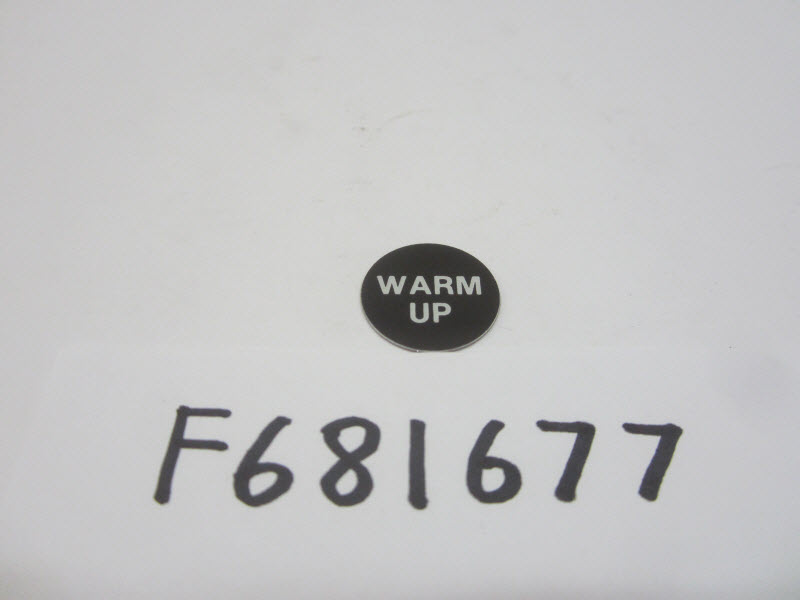

#32 F681677 INSERT-Choke Knob (1 required per assembly)
INSERT Choke Rod F681677
F681677OEM Part F681677 - Insert (more info) About Mercury Marine $4.50 $4.50 Add to shopping cart
Available to order:
Usually ships
within 8 days

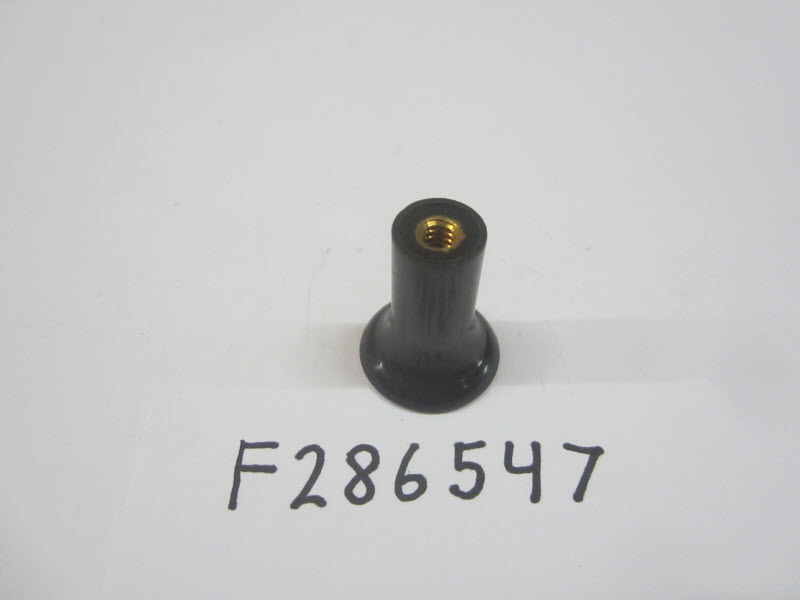

#33 F286547 KNOB-Choke (1 required per assembly)
KNOB,NLA F286547 F286547
F286547OEM Part F286547 - Knob, NLA (more info) About Mercury Marine $19.00 $19.00 Add to shopping cart
10+ in stock. Explain stock levels

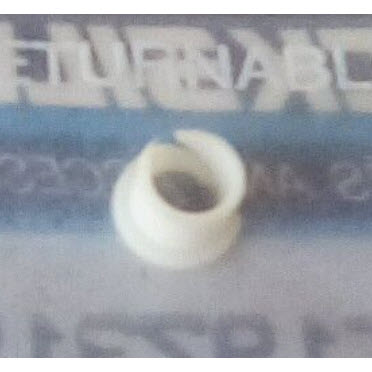

#34 23-F197319 BUSHING-Choke Rod (1 required per assembly)
BUSHING           O NLA
23-F197319 BUSHING O NLA
(more info)
    UnavailableUnavailable Parts

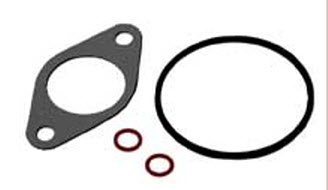

#- FK10294 GASKET SET-Carburetor (1 required per assembly)
GASKET SET Carbur FK10294
FK10294OEM Part FK10294 - Carburetor Gasket Set (more info) About Mercury Marine $10.50 $10.50 Add to shopping cart
Available to order:
Usually ships
within 8 days
#- 854210A 1 REPAIR KIT-Carburetor (1 required per assembly)
REPAIR KIT-CARB   O NLA
854210A 1 REPAIR KIT-CARB O NLA
(more info)
    UnavailableUnavailable Parts
