Parts for Force 15 HP (1984-1995) Ignition System (84A - 87A Models)

Revise Search: All Models > 15 HP (1984-1995) > 1984-A - 1992-B ( ) > Ignition System (84A - 87A Models)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

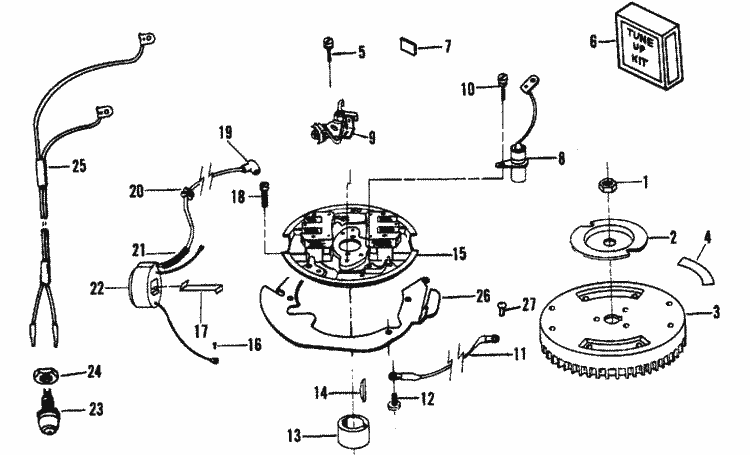

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	11-F1809	NUT (1/2-20) (1 required per assembly)
		11-F1809 - Nut (1/2-20) NLA [ More info ] $3.49 10+ In Stock.
#2	F901456 1	COLLAR-EMERGENCY STARTER (1 required per assembly)
		F901456-1 - Collar, NLA [ More info ] $5.00 10+ In Stock.
#3	FK302097	FLYWHEEL KIT (1 required per assembly)
		FK302097 - Flywheel Kit,NLA [ More info ] Unavailable
#4	FA609853	DECAL KIT-SHIFT TO NEUTRAL (1 required per assembly)
		FA609853 - Decal Kit [ More info ] Unavailable
		37-825149A 1 - Decal Kit [ More info ] $85.00 10+ In Stock.
#6	FK1066	TUNE-UP KIT (1 required per assembly)
		FK1066 - Tune Up Kit [ More info ] Unavailable
#7	F12360	FELT (1 required per assembly)
		F12360 - Felt Cam Wiper, NLA [ More info ] $1.39 10+ In Stock.
#8	F12181 1	CONDENSER (2 required per assembly)
		F12181-1 - Condenser [ More info ] $13.99 2 In Stock.
#9	F12153 1	CONTACT SET (2 required per assembly)
		F12153-1 - Contact Set [ More info ] Unavailable
#10	10-F12170	SCREW (2 required per assembly)
		10-F12170 - Screw, NLA [ More info ] $1.25 10+ In Stock.
#11	84-F289664	WIRE-GROUND (1 required per assembly)
		84-F289664 - Wire Assembly, NLA [ More info ] $2.50 7 In Stock.
#13	F217002	CAM-CONTACT POINTS (1 required per assembly)
		F217002 - Cam, NLA [ More info ] Unavailable
#14	28-F458498 1	KEY-FLYWHEEL (1 required per assembly)
		28-F458498-1 - Key, NLA [ More info ] $16.66 8 In Stock.
#15	F12343	PLATE ASSEMBLY-STATOR (1 required per assembly)
		F12343 - Plate Assembly, NLA [ More info ] Unavailable
#16	F12114	SCREW (2 required per assembly)
		F12114 - SCREW,NLA [ More info ] Unavailable
#17	F12146	SPRING (2 required per assembly)
		F12146 - Spring, Coil Wedge,NLA [ More info ] $1.67 10+ In Stock.
#18	10-F1090	SCREW WITH LOCKWASHER (10-24 X 9/16") (4 required per assembly)
		10-F1090 - SCREW-W/LW,NLA [ More info ] $1.25 10+ In Stock.
#19	FK1123	BOOT KIT-SPARK PLUG (2 required per assembly)
		FK1123 - Boot Kit [ More info ] Unavailable
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $7.90 10+ In Stock.
#20	F12088	GROMMET (2 required per assembly)
		F12088 - Grommet, Lead Wire,NLA [ More info ] $2.00 10+ In Stock.
#21	F12141	MARKER-COIL WIRE (1 required per assembly)
		F12141 - Stator Part, NLA [ More info ] Unavailable
#22	FA12370	COIL KIT (WITH LEAD WIRE) (2 required per assembly)
		FA12370 - Coil with Lead Wire and Wedge [ More info ] Unavailable
		889493A01 - Coil Kit [ More info ] $164.33 Available to Order: Usually ships within 10 days.
#23	87-817952A 1	SWITCH KIT-SHORTING (1 required per assembly)
		87-817952A 1 - Switch Kit [ More info ] Unavailable
		87-824440A18 - Switch KIT,NLA [ More info ] Unavailable
#24	11-F436280	NUT-SHORTING SWITCH (1 required per assembly)
		11-F436280 - Nut (1/2-20) NLA [ More info ] $1.59 10+ In Stock.
#25	F12186 1	WIRE-SHORTING SWITCH (1 required per assembly)
		F12186-1 - Wire Assembly, NLA [ More info ] Unavailable
#26	F617192	PLATE-THROTTLE CAM (1 required per assembly)
		F617192 - CAM-THROTTLE,NLA [ More info ] Unavailable
#27	10-F1091	SCREW (10-32 X 1/4") (1 required per assembly)
		10-F1091 - Screw -ss, NLA [ More info ] $1.25 10+ In Stock.
