Parts for Force 15 HP (1984-1995) Ignition System (Ser. # E035000 - E090399)

Revise Search: All Models > 15 HP (1984-1995) > 0E000001 - 0E127699 ( ) > Ignition System (Ser. # E035000 - E090399)

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

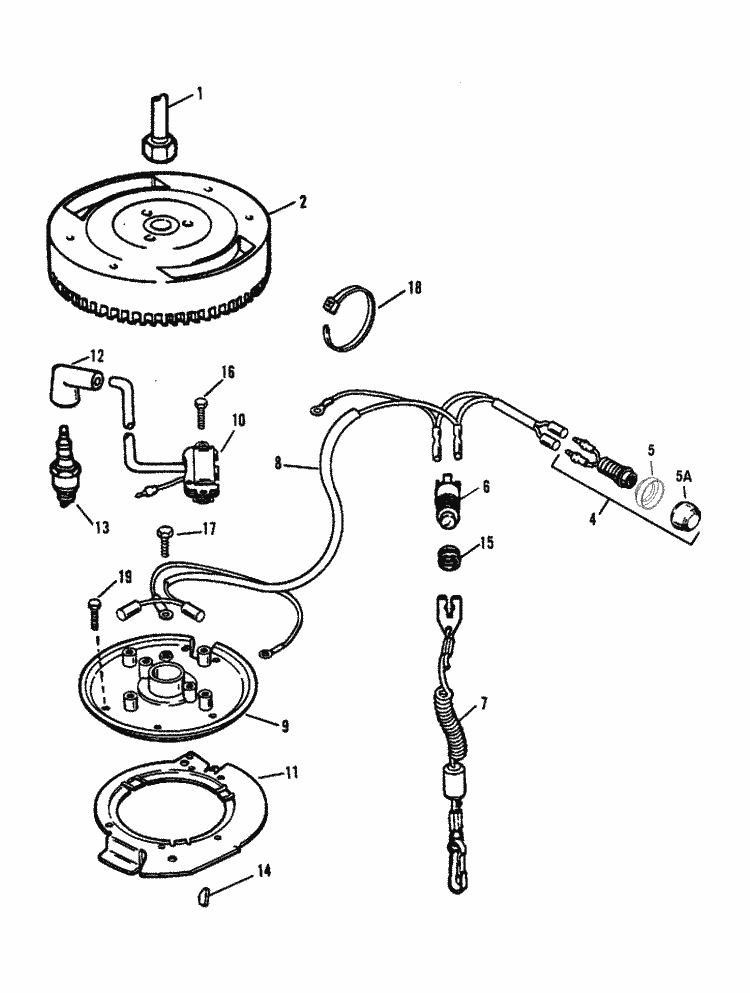

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F681091	NUT-FLYWHEEL (1 required per assembly)
		F681091 - Nut, NLA [ More info ] Unavailable
#2	200-824380T	FLYWHEEL (PAINTED) (1 required per assembly)
		200-824380T - Flywheel [ More info ] Unavailable
		200-824380T 1 - Flywheel [ More info ] Unavailable
		200-824380T 2 - Flywheel -w/Teeth, NLA [ More info ] $88.88 10+ In Stock.
#4	87-824440A 6	SWITCH ASSEMBLY-STOP (1 required per assembly)
		87-824440A 6 - Switch-STOP [ More info ] Unavailable
		87-824440A14 - Switch-STOP,NLA [ More info ] Unavailable
#5	824466A 3	COVER KIT-STOP SWITCH (1 required per assembly)
		824466A 3 - Cover Kit, NLA [ More info ] $6.38 10+ In Stock.
#5A	824915	BEZEL-STOP SWITCH COVER (1 required per assembly)
		824915 - Stop Switch Cover Bezel, NLA [ More info ] $2.50 10+ In Stock.

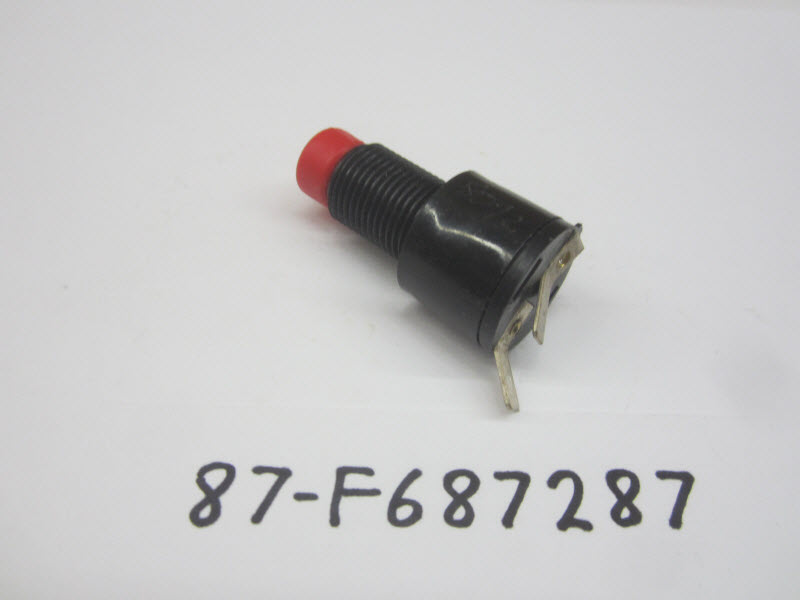

#6	87-F687287	SWITCH-EMERGENCY STOP (1 required per assembly)
		87-F687287 - Stop Switch [ More info ] $19.43 $19.23 10+ In Stock.
#7	819399A 1	LANYARD ASSEMBLY (1 required per assembly)
		819399A 1 - Lanyard Assembly [ More info ] Unavailable
		879104 - LANYARD W/CLIP,NLA [ More info ] Unavailable
#8	84-819379A 5	HARNESS ASSEMBLY-ENGINE STOP (1 required per assembly)
		84-819379A 5 - Harness Assembly, NLA [ More info ] $6.00 10+ In Stock.
#9	300-819305T	PLATE-STATOR (1 required per assembly)
		300-819305T - Stator Plate, NLA [ More info ] Unavailable
#10	300-819156T	IGNITION MODULE (CUT WIRE AS REQ'D) (2 required per assembly)
		300-819156T - Module - 5/15 HP [ More info ] Unavailable
		300-850899T - Ignition Module -5/15 HP [ More info ] $159.40 5 In Stock.
#11	819758T	CAM-THROTTLE (1 required per assembly)
		819758T - CAM-THROTTLE,NLA [ More info ] Unavailable
#12	FK1123	BOOT KIT-SPARK PLUG (SOFT RUBBER STYLE) (2 required per assembly)
		FK1123 - Boot Kit [ More info ] Unavailable
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $7.90 10+ In Stock.
#13	33-813423	SPARK PLUG (9.9) (2 required per assembly)
		33-813423 - NGK BPR6HS - Priced Individually [ More info ] Unavailable
		33-8M0182857 - NGK BPR6HS @4 [ More info ] Unavailable
		BPR6HS - NGK Spark Plug, 7022 [ More info ] $3.84 10+ In Stock.
#13	33-813414	SPARK PLUG (15) (2 required per assembly)
		33-813414 - NGK BP7HS Note: Priced Individually [ More info ] Unavailable
		33-813414 1 - NGK BP7HS - Priced Individually [ More info ] Unavailable
		BP7HS - NGK Spark Plug, 5111 [ More info ] $4.15 $3.23 Available to Order: Usually ships within 10 days.
		L82YC - Champion Spark Plug ( #328) [ More info ] $3.76 10+ In Stock.
#13	SEE DESC.	SPARK PLUG (15) (RFI) (CHAMPION # RL82YC) (OPT. required per assembly) ORDER LOCAL
#14	28-F458498 1	KEY-FLYWHEEL (1 required per assembly)
		28-F458498-1 - Key, NLA [ More info ] $16.66 8 In Stock.
#15	22-F681188	NUT-STOP SWITCH SLEEVE (1 required per assembly)
		22-F681188 - CONNECTOR [ More info ] Unavailable
		11-855594 - Nut, (Special)-Stop Switch Sleeve [ More info ] $7.00 10+ In Stock.
#16	10-824353	SCREW (8-32 X 3/4") (6 required per assembly)
		10-824353 - Screw, NLA [ More info ] $1.59 10+ In Stock.
#17	10-824352	SCREW (10-24 X 3/8") (1 required per assembly)
		10-824352 - Screw [ More info ] Unavailable
#18	56762	CABLE TIE (4") (AR required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 10+ In Stock.
		0317893 - Tie Strap [ More info ] $0.36 10+ In Stock.
#19	10-824358	SCREW (10-24 X 1/2") (6 required per assembly)
		10-824358 - Screw, NLA [ More info ] $1.25 10+ In Stock.
