Parts for Force 125 HP (1987) Engine Cover & Support Plate

Revise Search: All Models > 125 HP (1987) > 1258V7B ( ) > Engine Cover & Support Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

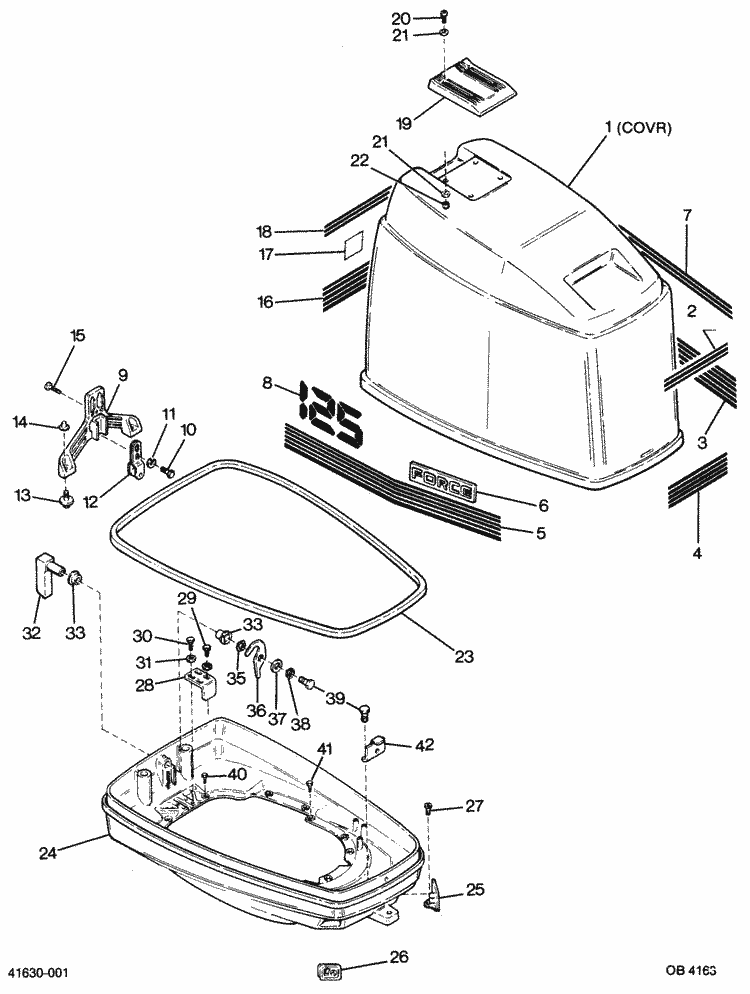

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	-FS664712	ENGINE COVER (WITHOUT PAINT, DECALS OR HARDWARE) (1 required per assembly)
		FS664712 - COWL ASSY-4 CYL [ More info ] Unavailable
		100-819747A 1 - COVER-BASIC-4 CYL [ More info ] Unavailable
		100-819747A 3 - COWL ASSY-BASIC [ More info ] Unavailable
		100-819747A 6 - COWL ASSY-BASIC [ More info ] Unavailable
		100-819747A 7 - COWL ASSY-BASIC [ More info ] Unavailable
		100-819747A 9 - COWL ASSY-BASIC [ More info ] Unavailable
		100-819747T 9 - Cowl Assembly -Basic, NLA [ More info ] $199.99 10+ In Stock.
#	-F2C664712	ENGINE COVER COMPLETE (- required per assembly)
		F2C664712 - Cover, NLA [ More info ] Unavailable
#2	-F663894	DECAL, TOP - FRONT (1 required per assembly)
		37-F663894 - Decal, NLA [ More info ] $1.50 1 In Stock.
#3	-F663397	DECAL, BOTTOM - PORT (1 required per assembly)
		37-F663397 - DECAL-PORT-85/12,NLA [ More info ] Unavailable
#4	-F663892	DECAL, BOTTOM - FRONT (1 required per assembly)
		37-F663892 - Front Decal, NLA [ More info ] $6.00 1 In Stock.
#5	-F663396	DECAL, BOTTOM - STARBOARD (1 required per assembly)
		37-F663396 - DECAL - Starboard-85/12,NLA [ More info ] Unavailable
#6	-F663366	MEDALLION - FORCE (2 required per assembly)
		F663366 - F6633661 [ More info ] Unavailable
		F663366-1 - MEDALLION-FORCE [ More info ] Unavailable
		819169 - Medallion - Force, NLA [ More info ] Unavailable
#7	-F663373	DECAL, TOP - SIDE (2 required per assembly)
		37-F663373 - DECAL-TOP SIDE,NLA [ More info ] Unavailable
#8	-F664386	DECAL, NUMBER 125 (2 required per assembly)
		37-F664386 - Decal -125, NLA [ More info ] Unavailable
#9	-F663774-1	BRACKET, ENGINE COVER LATCH (1 required per assembly)
		F663774-1 - F6637742, NLA [ More info ] Unavailable
		F663774-2 - Bracket [ More info ] Unavailable
		819814 1 - Bracket [ More info ] $48.00 10+ In Stock.
#12	-FA481743	BRACKET, ROLLER LATCH W/ROLLER (1 required per assembly)
		FA481743 - Bracket Assembly - Latch [ More info ] $4.00 2 In Stock.
		18173 - Bracket Assembly [ More info ] Unavailable
		893763 - Roller Latch Bracket [ More info ] $30.50 Available to Order: Usually ships within 10 days.
#13	-F481434	GUIDE, ENGINE COVER (2 required per assembly)
		F481434 - Engine Cover Guide [ More info ] $17.17 Available to Order: Usually ships within 10 days.
#14	-F2088	FASTENER (2 required per assembly)
		F2088 - Push Nut [ More info ] Unavailable
		11-91925 - Push Nut [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#15	-F1493	PAN HD SCREW 5/16 - 18 X 5/8 SS (3 required per assembly)
		F1493 - Screw - Priced Individually [ More info ] Unavailable
		10-28639 - Screw - Priced Individually [ More info ] $1.99 10 In Stock.
#16	-F663528	DECAL, BOTTOM - REAR (1 required per assembly)
		37-F663528 - Rear Decal -85/12,NLA [ More info ] $6.00 1 In Stock.
#17	-F665387	DECAL, LOGO (US MARINE) (1 required per assembly)
		F665387 - 37F6853872 [ More info ] Unavailable
		37-F685387-2 - Decal - (Blue), NLA [ More info ] $1.50 8 In Stock.
#18	-F663585	DECAL, TOP - REAR (1 required per assembly)
		37-F663585 - Decal - Top, NLA [ More info ] $5.00 1 In Stock.
#19	-F663269	HANDLE, TILT (1 required per assembly)
		F663269 - HANDLE-TILT [ More info ] Unavailable
		816518 - HANDLE-TILT NLA C [ More info ] Unavailable
		828477 - HANDLE-TILT [ More info ] Unavailable
#20	-F2143	HEX SOC. HD SCREW, 1/4 - 20 X 1 SS (4 required per assembly)
		10-F2143 - Screw -ss [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#21	-F2012	WASHER (8 required per assembly)
		F2012 - Washer [ More info ] $0.25 8 In Stock.
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
#22	-F7024	STOP NUT, 1/4 - 20 (4 required per assembly)
		F7024 - 11F7060 [ More info ] Unavailable
		11-F7060 - 118267118 [ More info ] Unavailable
		11-13855 - Nut (1/4-20) [ More info ] Unavailable
		11-826711 8 - Nut [ More info ] $3.47 1 In Stock.
#	-F663984	BLANKET, TOP (NOT SHOWN) (1 required per assembly)
		F663984 - F6639841 [ More info ] Unavailable
		F663984-1 - Blanket-TOP [ More info ] Unavailable
		827291 - Blanket-TOP,NLA [ More info ] Unavailable
#	-F664985	BLANKET, SIDE (NOT SHOWN) (2 required per assembly)
		F664985 - Blanket-SIDE,NLA [ More info ] $20.00 1 In Stock.
#23	-F663756	PACKING (1 required per assembly)
		F663756 - F6637561, NLA [ More info ] Unavailable
		F663756-1 - PACKING-81 INCH [ More info ] Unavailable
		819717 2 - PACKING-81 INCH [ More info ] Unavailable
#24	-F663038	SUPPORT PLATE (1 required per assembly)
		F663038 - F6630381, NLA [ More info ] Unavailable
		F663038-1 - Support Plate [ More info ] Unavailable
		100-817606 - Support Plate [ More info ] Unavailable
		100-817606F - PLATE-SUPPORT [ More info ] Unavailable
		100-817606T - Plate - Support, NLA [ More info ] Unavailable
#25	-F549189	BUSHING, ELECTRIC CABLE (1 required per assembly)
		F549189 - F5491891 [ More info ] Unavailable
		F549189-1 - 23F5491892 [ More info ] Unavailable
		23-F549189-2 - BUSHING [ More info ] Unavailable
		23-828763 - Bushing, NLA [ More info ] $9.17 10+ In Stock.
#26	-F660189	BUSHING, CABLE ENTRY (1 required per assembly)
		F660189 - BUSHING-ENTRY [ More info ] Unavailable
		23-819006 - Entry Bushing [ More info ] Unavailable
		23-819006 1 - BUSHING-ENTRY [ More info ] Unavailable
		23-819006 2 - Entry Bushing, NLA [ More info ] $10.39 10+ In Stock.
#27	-F1733	PAN HD SCREW, 10 - 24 X 9/16 (3 required per assembly)
		10-F1733 - Screw, SS [ More info ] $1.29 2 In Stock.
		10-852453 - Screw [ More info ] $1.40 Available to Order: Usually ships within 10 days.
#28	-F335654-1	DEFLECTION STOP (1 required per assembly)
		F335654-1 - F3356542 [ More info ] $2.00 1 In Stock.
		F335654-2 - Stop, NLA [ More info ] $6.00 10+ In Stock.
#29	-F1858	HEX CAP SCREW, 5/16 - 18 X 1 (2 required per assembly)
		10-F1858 - Screw -ss, NLA [ More info ] Unavailable
#30	-F1857	HEX CAP SCREW, 5/16 - 18 X 5/8 (2 required per assembly)
		10-F1857 - Screw SS [ More info ] $0.60 4 In Stock.
		10-90285 - Screw [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#31	-F8096	SPRING LOCKWASHER (4 required per assembly)
		F8096 - LockWasher - Priced Individually [ More info ] Unavailable
		13-53166 - LockWasher - Priced Individually [ More info ] $1.70 10+ In Stock.
#32	-FA663469	ENGINE COVER LATCH HANDLE W/SHAFT (1 required per assembly)
		FA663469 - HANDLE ASSY [ More info ] Unavailable
		820000A 4 - HANDLE ASY-GRA/GR [ More info ] Unavailable
		820000A 7 - HANDLE ASSY-ST/GR [ More info ] Unavailable
		820000A08 - Handle Assembly - Black, NLA [ More info ] $20.00 10+ In Stock.
#33	-F286818	BEARING, LATCH SHAFT (2 required per assembly)
		23-F286818 - Bushing [ More info ] $0.55 7 In Stock.
		23-812707 - Bushing [ More info ] $8.00 10+ In Stock.
#35	-F2047	WAVE WASHER (1 required per assembly)
		13-F2047 - Wave Washer [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#36	-F481777	CAM, LATCH SHAFT (1 required per assembly)
		F481777 - Latch Shaft Cam [ More info ] Unavailable
		889566 - Latch-Cam [ More info ] Unavailable
		8M0001081 - Cam [ More info ] $39.33 Available to Order: Usually ships within 10 days.
#37	-F8094	WASHER (1 required per assembly)
		F8094 - Washer SS [ More info ] $1.29 5 In Stock.
		12-40023 16 - Washer - Priced Individually [ More info ] $1.00 10+ In Stock.
		12-8M0214930 - WASHER @5 [ More info ] Unavailable
#38	-F8083	LOCKWASHER (1 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#39	-F1854	HEX CAP SCREW 1/4 - 20 X 5/8 (3 required per assembly)
		F1854 - Screw SS [ More info ] Unavailable
		10-28635 - Screw - Priced Individually [ More info ] $1.70 10+ In Stock.
#40	-F1203	HEX CAP SCREW 1/4 - 20 X 7/8 (6 required per assembly)
		F1203 - Screw - Priced Individually [ More info ] Unavailable
		10-28668 - Screw - Priced Individually [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#41	-F1238	HEX CAP SCREW 1/4 - 20 X 3/4 (7 required per assembly)
		F1238 - Screw - Priced Individually [ More info ] Unavailable
		10-49668 - Screw - Priced Individually [ More info ] $1.10 2 In Stock.
#42	-F663480	RETAINER (1 required per assembly)
		F663480 - F6634801 [ More info ] $2.50 4 In Stock.
		F663480-1 - Retainer, NLA [ More info ] $9.00 4 In Stock.
