Parts for Force 120 HP (1990-1994) Electrical Components

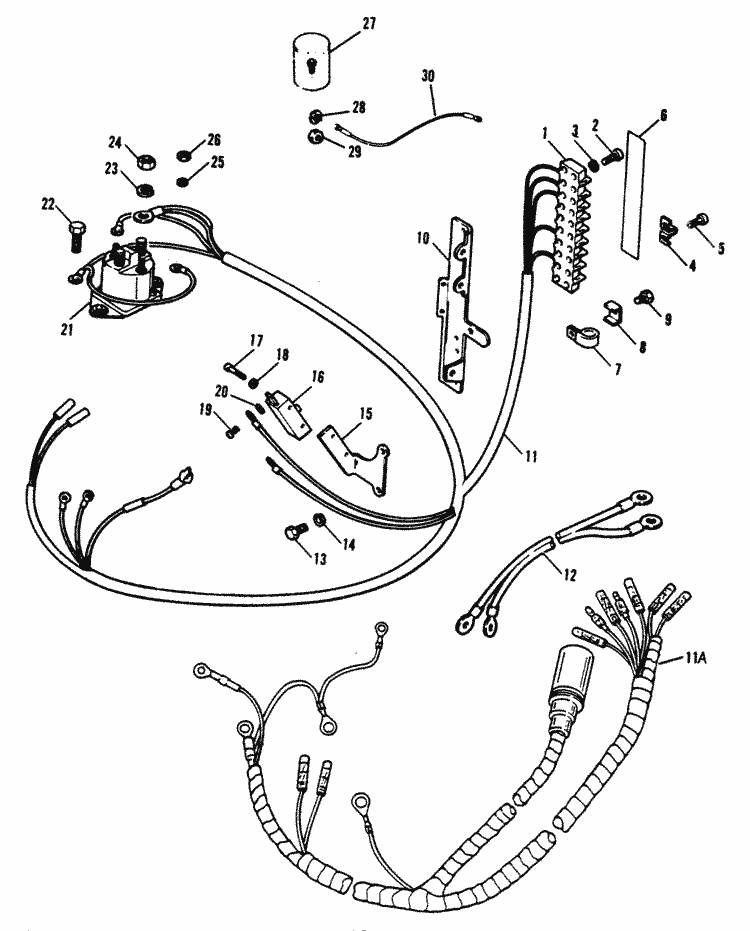

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 54-823461 | CABLE TIE (8-1/2") (AR required per assembly) SERIAL 0E009500-0E093699 |
 |
|
54-823461 - Tie Strap, NLA [ More info ]
|
| # | 54-816311 | CABLE TIE (8") (AR required per assembly) SERIAL 0E009500-0E093699 |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #1 | FA616497 | BLOCK KIT-TERMINAL (1 required per assembly) SERIAL 0E000001-0E009499 |
  |
|
FA616497 - Terminal Block Kit, NLA [ More info ] Unavailable |
| #3 | 13-26996 | LOCKWASHER (#10) (2 required per assembly) SERIAL 0E000001-0E009499 |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #4 | 54-F307317 | CLIP-GROUND (2 required per assembly) SERIAL 0E000001-0E009499 |
|
|
54-F307317 - Clip [ More info ]
|
| #5 | 10-41069 | SCREW (10-24 X 3/4") (2 required per assembly) SERIAL 0E000001-0E009499 |
  |
|
10-41069 - Screw [ More info ]
|
| #6 | 37-F529398-1 | DECAL-WIRING (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
37-F529398-1 - DECAL-WIRING,NLA [ More info ]
|
| #7 | 54-F289446-1 | CLAMP (1 required per assembly) SERIAL 0E000001-0E009499 |
|
54-F289446-1 - CLAMP,NLA [ More info ] Unavailable |
|
| #8 | 54-F438668 | RETAINER-CABLE (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
54-F438668 - Retainer, NLA [ More info ]
|
| #9 | 10-34939 | SCREW (1/4-20 X 1/2") (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
10-34939 - Screw w/ Lw, NLA [ More info ]
|
| #10 | F439493-1 | BRACKET-TERMINAL BLOCK (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
F439493-1 - Bracket -4 & 5 Cylinder, NLA [ More info ]
|
| #11 | 84-817459A 1 | HARNESS-WIRING (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
84-817459A 1 - Harness Assembly, NLA [ More info ] Unavailable |
| #11A | 84-823392A 1 | HARNESS-WIRING (1 required per assembly) SERIAL 0E009500-0E093699 |
|
84-823392A 1 - HARNESS ASSY [ More info ] Unavailable |
|
  |
|
84-827244A 1 - Harness Assembly [ More info ]
|
| #12 | 84-F381896-4 | CABLE-BATTERY (ALL MODELS) (1 required per assembly) |
|
84-F381896-4 - Battery Cable [ More info ] Unavailable |
|
|
84-855844A 1 - Battery Cable Assembly [ More info ] Unavailable |
|
  |
|
84-88439A50 - Battery Cable Kit [ More info ]
|
|
|
84-8M0210761 - CABLE KIT-BATTERY Q=T [ More info ] In Stock |
| #13 | 10-F1532 | SCREW (1/4-20 X 1") (2 required per assembly) SERIAL 0E000001-0E009499 |
|
|
10-F1532 - Screw [ More info ]
|
  |
|
10-819110100 - Screw [ More info ]
|
| #15 | F749551-1 | BRACKET-INTERLOCK SWITCH (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
F749551-1 - Bracket, NLA [ More info ]
|
| #16 | 87-F84449 | SWITCH-INTERLOCK (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
87-F84449 - Switch [ More info ] Unavailable |
| #17 | 10-F2193 | SCREW (6-32 X 7/8") (2 required per assembly) SERIAL 0E000001-0E009499 |
|
|
10-F2193 - Screw -ss, NLA [ More info ]
|
| #18 | 12-27882 | WASHER (2 required per assembly) SERIAL 0E000001-0E009499 |
|
|
12-27882 - Washer - Priced Individually [ More info ]
|
| #19 | 10-69080 | SCREW (6-32 X 1/4") (2 required per assembly) SERIAL 0E000001-0E009499 |
|
|
10-69080 - Screw [ More info ]
|
| #20 | 13-F1704 | LOCKWASHER (#6 INTERNAL) (2 required per assembly) SERIAL 0E000001-0E009499 |
|
|
13-F1704 - LockWasher [ More info ]
|
| #21 | 89-F460917-1 | RELAY-STARTER (1 required per assembly) SERIAL 0E000001-0E093699 |
|
89-F460917-1 - Solenoid [ More info ] Unavailable |
|
  |
|
89-817109A 3 - Solenoid Kit [ More info ]
|
  |
|
18-5835 - Solenoid, 89-817109A3 - 4 Post [ More info ]
|
  |
|
SW295 - Solenoid [ More info ]
|
  |
|
SW109 - Solenoid [ More info ]
|
| #22 | 10-90192 | SCREW (1/4-20 X 3/4") (2 required per assembly) SERIAL 0E000001-0E093699 |
  |
|
10-90192 - Screw [ More info ]
|
| #23 | 13-53166 | LOCKWASHER (5/16") (2 required per assembly) SERIAL 0E000001-0E093699 |
|
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #24 | 11-68292 | NUT (5/16-18) (2 required per assembly) SERIAL 0E000001-0E093699 |
|
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
|
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #26 | 11-68219 | NUT (10-32) (2 required per assembly) SERIAL 0E000001-0E093699 |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #27 | 89-F654924-1 | SOLENOID-CHOKE (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
89-F654924-1 - Solenoid [ More info ]
|
  |
89-803629T - Solenoid, NLA [ More info ] Unavailable |
|
  |
|
89-889273 - Choke Solenoid [ More info ] Unavailable |
  |
|
SW924 - Choke Solenoid [ More info ]
|
| #28 | 13-F8056 | LOCKWASHER (#8) (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
13-F8056 - LockWasher [ More info ]
|
| #29 | 11-F1647 | NUT (8-32) (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
11-F1647 - Nut, (#8-32)(Stainless Steel) NLA [ More info ]
|
| #30 | 84-819210A 1 | WIRE ASSEMBLY (1 required per assembly) SERIAL 0E000001-0E009499 |
|
|
84-819210A 1 - Wire Assembly, NLA [ More info ]
|
