Parts for Force 120 HP (1990 L-Drive) Carburetor

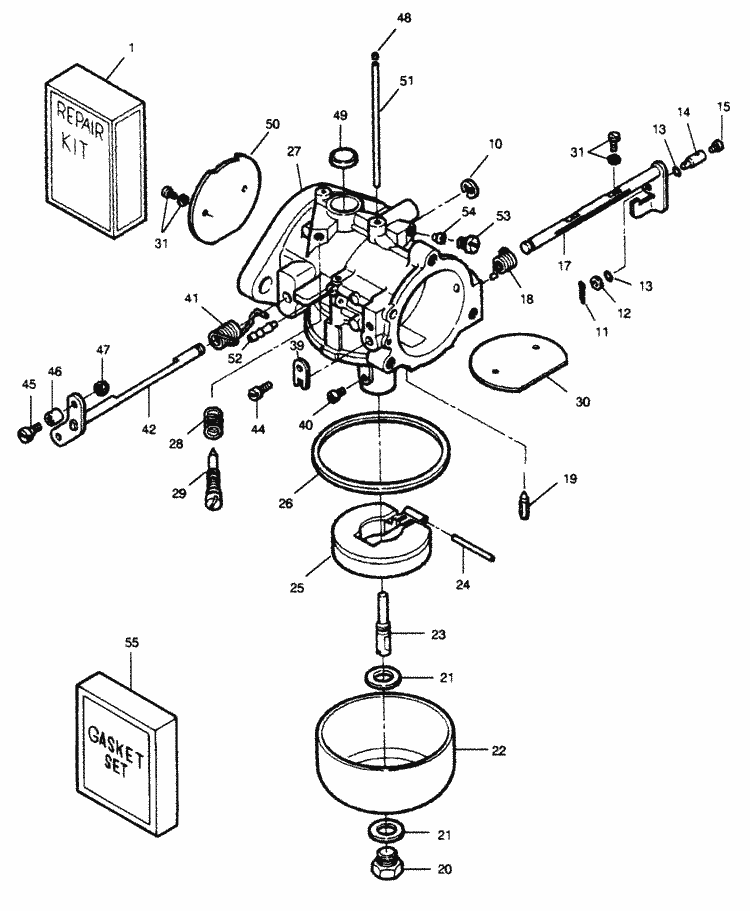

Engine Diagram

Ref. No. Part No. Description Manufacturer List Price Your Price Order
#1 FK10288 REPAIR PARTS KIT (1 required per assembly)
REPAIR KIT        O - Replaced by -820576A 1
FK10288This part has been superseded. REPAIR KIT O - Replaced by -820576A 1
(more info)
    UnavailableUnavailable Parts
CARB KIT,SEE NOTE!,NLA 820576A 1
820576A 1OEM Part 820576A 1 - CARB Kit,SEE NOTE!, NLA (more info) About Mercury Marine $116.28 Add to shopping cart
3 in stock. Explain stock levels
#10 FO16620 E-RING (1 required per assembly)
E RING            O NLA
FO16620 E RING O NLA
(more info)
    UnavailableUnavailable Parts
#11 F1014 COTTER PIN (2 required per assembly)
PIN SS            O - Replaced by 18-26953
F1014This part has been superseded. PIN SS O - Replaced by 18-26953
(more info)
    UnavailableUnavailable Parts
COTTER PIN 18-26953
18-26953OEM Part 18-26953 - Cotter Pin - Priced Individually (more info) About Mercury Marine $2.90 $1.96 Add to shopping cart
10+ in stock. Explain stock levels
#12 F8088 PLAIN WASHER (3 required per assembly)
WASHER            O - Replaced by 12-27882
12-F8088This part has been superseded. WASHER O - Replaced by 12-27882
(more info)
    UnavailableUnavailable Parts
WASHER Note: must be ordered in multiples of 5 12-27882
12-27882OEM Part 12-27882 - Washer - Priced Individually (more info) About Mercury Marine $0.86 $0.86 Add to shopping cart
10+ in stock. Explain stock levels
#13 F184579 O-RING SEAL (5 required per assembly)
O RING            O - Replaced by 25-68211
25-F184579This part has been superseded. O RING O - Replaced by 25-68211
(more info)
    UnavailableUnavailable Parts
O RING 25-68211
25-68211OEM Part 25-68211 - O-Ring (more info) About Mercury Marine $1.00 $1.00 Add to shopping cart
Available to order:
Usually ships
within 8 days
#14 F184033-1 SWIVEL, TOP CARBURETOR (1 required per assembly)
SWIVEL,NLA F184033-1 F184033-1
F184033-1OEM Part F184033-1 - Swivel (more info) About Mercury Marine $9.00 $9.00 Add to shopping cart
10+ in stock. Explain stock levels
#- F85033 SWIVEL, CHOKE ROD (1 required per assembly) (BOTTOM CRBURETOR) (NOT SHOWN)
SWIVEL,NLA F85033
F85033OEM Part F85033 - Swivel (more info) About Mercury Marine $100.00 $100.00 Add to shopping cart
10+ in stock. Explain stock levels
#15 F1059 FILL HD. SCREW, 6 - 32 X 1/4 (2 required per assembly)
SCREW-SS,NLA 10-F1059
10-F1059OEM Part 10-F1059 - Screw -ss, NLA (more info) About Mercury Marine $1.35 $1.35 Add to shopping cart
10+ in stock. Explain stock levels
#17 FO16301 CHOKE SHAFT AND LEVER (1 required per assembly)
SHAFT AND LEVER,NLA FO16301
FO16301OEM Part FO16301 - Shaft And Lever (more info) About Mercury Marine $40.00 $40.00 Add to shopping cart
10+ in stock. Explain stock levels
#18 F10285 CHOKE SHAFT RETURN SPRING (1 required per assembly)
SPRING            O NLA
F10285 SPRING O NLA
(more info)
    UnavailableUnavailable Parts
#19 F10265 INLET NEEDLE (1 required per assembly)
NEEDLE Inlet F10265 F10265
F10265OEM Part F10265 - Inlet Needle (more info) About Mercury Marine $11.83 $11.83 Add to shopping cart
7 in stock. Explain stock levels
#20 FO16132 FUEL BOWL RETAINING SCREW (1 required per assembly)
SCREW FO16132
FO16132OEM Part FO16132 - Screw (more info) About Mercury Marine $6.80 $6.80 Add to shopping cart
Available to order:
Usually ships
within 8 days
#21 FO5323 FUEL BOWL RETAINING SCREW GASKET (2 required per assembly)
GASKET 27-FO5323 27-FO5323
27-FO5323OEM Part 27-FO5323 - Gasket (more info) About Mercury Marine $2.50 $2.50 Add to shopping cart
10+ in stock. Explain stock levels
#22 FO16130 FUEL BOWL (1 required per assembly)
BOWL FO16130 FO16130
FO16130OEM Part FO16130 - Fuel Bowl (more info) About Mercury Marine $10.10 $10.10 Add to shopping cart
Available to order:
Usually ships
within 8 days
#23 FO16133 MAIN NOZZLE (1 required per assembly)
NOZZLE FO16133 FO16133
FO16133OEM Part FO16133 - Nozzle (more info) About Mercury Marine $19.25 $19.25 Add to shopping cart
Available to order:
Usually ships
within 8 days
#24 FO13944 FLOAT LEVER PIN (1 required per assembly)
PIN 17-FO13944
17-FO13944OEM Part 17-FO13944 - Carburetor Float Pin (more info) About Mercury Marine $3.90 $3.90 Add to shopping cart
1 in stock. Explain stock levels
#25 FO13554 FLOAT (1 required per assembly)
FLOAT-CARB        O - Replaced by -891730A01
FO13554This part has been superseded. FLOAT-CARB O - Replaced by -891730A01
(more info)
    UnavailableUnavailable Parts
FLOAT KIT 891730A01 891730A01
891730A01OEM Part 891730A01 - Float (more info) About Mercury Marine $26.00 $26.00 Add to shopping cart
3 in stock. Explain stock levels
#26 FO15623 FUEL BOWL GASKET (1 required per assembly)
GASKET Note: must be ordered in multiples of 5 27-FO15623 27-FO15623
27-FO15623OEM Part 27-FO15623 - Gasket - Priced Individually (more info) About Mercury Marine $2.50 $2.50 Add to shopping cart
10+ in stock. Explain stock levels
#27 F698061-3 CARBURETOR COMPLETE (1 required per assembly) (TOP) (TC 108D)
#- F699061-3 CARBURETOR COMPLETE (1 required per assembly) (BOTTOM) (TC 109D
CARBURETOR,NLA 1300-F699061-3 1300-F699061-3
1300-F699061-3OEM Part 1300-F699061-3 - Carburetor, NLA (more info) About Mercury Marine $150.00 $150.00 Add to shopping cart
6 in stock. Explain stock levels
#28 FO11103 IDLE MIXTURE SCREW SPRING (1 required per assembly)
SPRING            O - Replaced by 24-27160
FO11103This part has been superseded. SPRING O - Replaced by 24-27160
(more info)
    UnavailableUnavailable Parts
SPRING Note: must be ordered in multiples of 3 24-27160
24-27160OEM Part 24-27160 - Spring - Priced Individually (more info) About Mercury Marine $2.70 $2.70 Add to shopping cart
10+ in stock. Explain stock levels
#29 F10268 IDLE MIXTURE SCREW (1 required per assembly)
SCREW F10268 F10268
F10268OEM Part F10268 - Screw - Idle Mix (more info) About Mercury Marine $11.00 $11.00 Add to shopping cart
Available to order:
Usually ships
within 8 days
#30 FO17719 SHUTTER (1 required per assembly)
SHUTTER,NLA FO17719
FO17719OEM Part FO17719 - Shutter, NLA (more info) About Mercury Marine $5.00 $5.00 Add to shopping cart
6 in stock. Explain stock levels
#31 F10328 CHOKE AND THROTTLE SHUTTER SCREW (4 required per assembly)
SCREW-W/LW        O - Replaced by 10-803176
10-F10328This part has been superseded. SCREW-W/LW O - Replaced by 10-803176
(more info)
    UnavailableUnavailable Parts
SCREW-W/PATCH 10-803176 10-803176
10-803176OEM Part 10-803176 - Screw (more info) About Mercury Marine $2.30 $2.30 Add to shopping cart
Available to order:
Usually ships
within 8 days
#39 FO9678 CLIP, CHOKE SHAFT (1 required per assembly)
CLIP              O NLA
FO9678 CLIP O NLA
(more info)
    UnavailableUnavailable Parts
#40 F10271 MAIN FUEL JET STD. .096 SEA LEVEL - 1500 FT. (1 required per assembly) (TOP CARBURETOR)
JET-.096          O - Replaced by 1399-6249
F10271This part has been superseded. JET-.096 O - Replaced by 1399-6249
(more info)
    UnavailableUnavailable Parts
JET Main (.096) 1399-6249 1399-6249
1399-6249OEM Part 1399-6249 - Jet -.096 (more info) About Mercury Marine $11.10 $11.10 Add to shopping cart
8 in stock. Explain stock levels
#- FO14191 MAIN FUEL JET STD. .094 SEA LEVEL - 1500 FT. (1 required per assembly) (BOTTOM CARBURETOR)
JET-.094          O NLA
FO14191 JET-.094 O NLA
(more info)
    UnavailableUnavailable Parts
#- FO14190 MAIN FUEL JET (.092) 1500-3000 FT. (BOTTOM CARBURETOR) ( required per assembly)
JET-.092          O - Replaced by 1395-5733
FO14190This part has been superseded. JET-.092 O - Replaced by 1395-5733
(more info)
    UnavailableUnavailable Parts
JET Main (.092) 1395-5733 1395-5733
1395-5733OEM Part 1395-5733 - Jet -.092 (more info) About Mercury Marine $6.40 $6.40 Add to shopping cart
3 in stock. Explain stock levels
#- FO15406 MAIN FUEL JET (.090) 3000-4500 FT. (BOTTOM CARBURETOR) ( required per assembly)
JET-.090          O - Replaced by 1395-6247
FO15406This part has been superseded. JET-.090 O - Replaced by 1395-6247
(more info)
    UnavailableUnavailable Parts
JET Main (.090) 1395-6247
1395-6247OEM Part 1395-6247 - Jet -.090 (more info) About Mercury Marine $10.60 $10.60 Add to shopping cart
Available to order:
Usually ships
within 8 days
#- FO13193 MAIN FUEL JET (.088) 4500-6000 FT. (BOTTOM CARBURETOR) ( required per assembly)
JET Main (.088) FO13193
FO13193OEM Part FO13193 - Jet -.088 (more info) About Mercury Marine $12.60 $12.60 Add to shopping cart
Available to order:
Usually ships
within 8 days
#- FO13949 MAIN FUEL JET (.086) 6000 FEET & UP (BOTTOM CARBURETOR) ( required per assembly)
JET (.086) FO13949
FO13949OEM Part FO13949 - Jet -.086 (more info) About Mercury Marine $12.30 $12.30 Add to shopping cart
Available to order:
Usually ships
within 8 days
#41 FO16143 THROTTLE SHAFT RETURN SPRING (1 required per assembly)
SPRING FO16143 FO16143
FO16143OEM Part FO16143 - Spring (more info) About Mercury Marine $11.50 $11.50 Add to shopping cart
1 in stock. Explain stock levels
#42 FO17884 THROTTLE SHAFT AND LEVER (1 required per assembly)
SHAFT AND LEVER T FO17884 FO17884
FO17884OEM Part FO17884 - Shaft And Lever (more info) About Mercury Marine $71.50 $71.50 Add to shopping cart
Available to order:
Usually ships
within 8 days
#44 F10284 SCREW (1 required per assembly)
SCREW W/LW        O NLA
F10284 SCREW W/LW O NLA
(more info)
    UnavailableUnavailable Parts
#45 F333316 THROTTLE ROLLER SHAFT (1 required per assembly)
SHAFT             O - Replaced by -830110
F333316This part has been superseded. SHAFT O - Replaced by -830110
(more info)
    UnavailableUnavailable Parts
SHAFT,NLA 830110
830110OEM Part 830110 - Shaft, NLA (more info) About Mercury Marine $6.00 $6.00 Add to shopping cart
10+ in stock. Explain stock levels
#46 F92759 THROTTLE ROLLER (1 required per assembly)
ROLLER            O - Replaced by -819225
F92759This part has been superseded. ROLLER O - Replaced by -819225
(more info)
    UnavailableUnavailable Parts
ROLLER,NLA 819225
819225OEM Part 819225 - Roller, NLA (more info) About Mercury Marine $3.00 $3.00 Add to shopping cart
10+ in stock. Explain stock levels
#47 F1997 STOP NUT, 8 - 32 (1 required per assembly)
NUT               O - Replaced by 11-826709  4
11-F1997This part has been superseded. NUT O - Replaced by 11-826709 4
(more info)
    UnavailableUnavailable Parts
NUT Note: must be ordered in multiples of 5 11-826709  4
11-826709 4OEM Part 11-826709 4 - Nut - Priced Individually (more info) About Mercury Marine $1.73 $1.73 Add to shopping cart
Available to order:
Usually ships
within 8 days
#48 FO10588 BODY CHANNEL CUP PLUG (8 required per assembly)
PLUG 19-FO10588
19-FO10588OEM Part 19-FO10588 - Plug -cup - Priced Individually (more info) About Mercury Marine $5.20 $5.20 Add to shopping cart
10+ in stock. Explain stock levels
#49 FO16128 BODY CHANNEL WELCH PLUG (1 required per assembly)
PLUG 19-FO16128
19-FO16128OEM Part 19-FO16128 - Plug -cup (more info) About Mercury Marine $2.50 $2.50 Add to shopping cart
Available to order:
Usually ships
within 8 days
#50 FO16142 THROTTLE SHUTTER (1 required per assembly)
SHUTTER,NLA FO16142
FO16142OEM Part FO16142 - Shutter, NLA (more info) About Mercury Marine $7.00 $7.00 Add to shopping cart
3 in stock. Explain stock levels
#51 FO16993 BY-PASS TUBE (1 required per assembly)
TUBE FO16993
FO16993OEM Part FO16993 - Tube - Bypass (more info) About Mercury Marine $9.80 $9.80 Add to shopping cart
Available to order:
Usually ships
within 8 days
#52 F10274 CONNECTOR (1 required per assembly)
CONNECTOR         O NLA
F10274 CONNECTOR O NLA
(more info)
    UnavailableUnavailable Parts
#53 F10275 SCREW, SEALING (1 required per assembly)
SCREW F10275
F10275OEM Part F10275 - Screw (more info) About Mercury Marine $2.60 $2.60 Add to shopping cart
Available to order:
Usually ships
within 8 days
#54 F10273 JET (.047) (1 required per assembly)
JET (.047) F10273
F10273OEM Part F10273 - Jet -.047 (more info) About Mercury Marine $15.10 $15.10 Add to shopping cart
Available to order:
Usually ships
within 8 days
#55 FK10023 GASKET SET (1 required per assembly)
GASKET SET Carbur FK10023 FK10023
FK10023OEM Part FK10023 - Carburetor Gasket Set (more info) About Mercury Marine $7.60 $7.60 Add to shopping cart
10+ in stock. Explain stock levels
