Parts for Chrysler 75 HP (1975) Gear Housing

Revise Search: All Models > 75 HP (1975) > 756BB ( ) > Gear Housing

NEED PARTS OR KITS?
View diagram and parts list below.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F84735	SEAL, INLET WATER LINE, LOWER (1 required per assembly)
		F84735 - F84735 - SEAL O [ More info ] Unavailable Replaced by -FA523735
		FA523735 - Lower Inlet Water Line Seal [ More info ] $6.90 10+ in stock.
#2	F1584	FLAT HD SCREW, S.S., 1/4 - 20 X 1 3/8 (4 required per assembly)
		10-F1584 - Screw SS , NLA [ More info ] $1.25 10+ in stock.

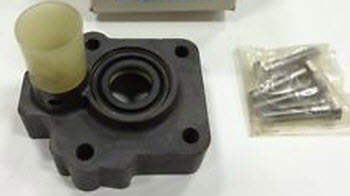

#3	FK500060	WATER PUMP BODY (1 required per assembly) W/ITEMS 1 AND 11 ORIGINAL FORCE P/N A369060-1
		FK500060 - Water Pump Body [ More info ] $156.00 Available to order: Usually ships within 8 days.
#4	F438271	RETAINER, CRANKSHAFT SPLINE SEAL (1 required per assembly)
		23-F438271 - Retainer, NLA [ More info ] $18.00 10+ in stock.
#5	F438065	WATER PUMP IMPELLER (1 required per assembly)
		F438065 - F438065 - IMPELLER O [ More info ] Unavailable Replaced by 47-F438065-1
		47-F438065-1 - Impeller [ More info ] $21.34 10+ in stock.

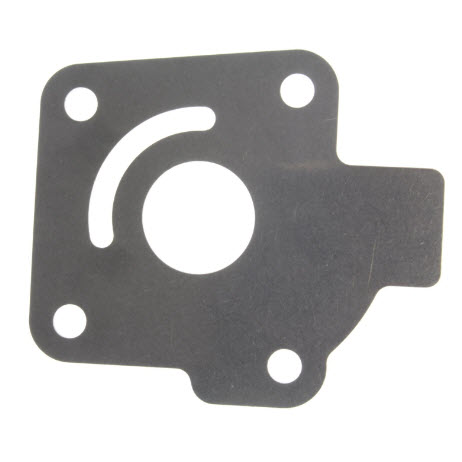

#6	F369562	WATER PUMP BACK PLATE (1 required per assembly)
		F369562 - Water Pump Back Plate [ More info ] $18.92 Available to order: Usually ships within 8 days.
#7	F84031	GASKET, WATER PUMP (1 required per assembly)
		27-F84031 - Gasket [ More info ] $1.90 Available to order: Usually ships within 8 days.
		18-0417-9 - Gasket 27-F84031 2-Pack [ More info ] $3.98 $3.92 Available to order: Usually ships within 8 days.
#8	F84307-1	SEAL, DRIVESHAFT (1 required per assembly)
		26-F84307-1 - Seal, NLA [ More info ] $27.00 3 in stock.

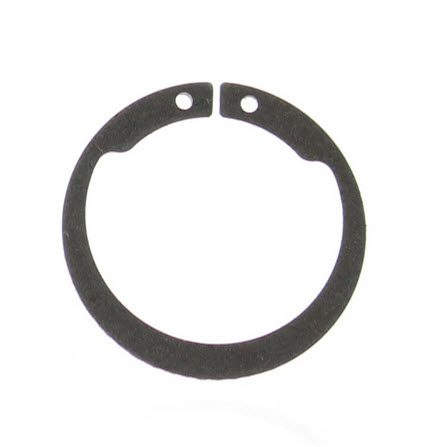

#9	F84173	RETAINING RING (1 required per assembly)
		53-F84173 - Ring - Retaining, NLA [ More info ] $2.50 8 in stock.
#10	FA40901	BEARING, DRIVESHAFT W/CUP (1 required per assembly)
		FA40901 - Driveshaft Bearing with Cup [ More info ] $51.58 Available to order: Usually ships within 8 days.
#11	F351307	SEAL, WATER PUMP (1 required per assembly)
		26-F351307 - Seal [ More info ] $20.40 $17.47 Available to order: Usually ships within 8 days.
#12	F438129	SEAL, DRIVESHAFT SPLINE (1 required per assembly)
		23-F438129 - 23-F438129 - SEAL O [ More info ] Unavailable Replaced by 25-819427
		25-819427 - Seal [ More info ] $2.50 10+ in stock.
#13	F338618-1	SEAL, GEAR SHIFT ROD (1 required per assembly)
		F338618-1 - F338618-1 - SEAL O [ More info ] Unavailable Replaced by 26-817472
		26-817472 - Seal [ More info ] $6.50 9 in stock.
		18-0500 - Seal, 26-817472 [ More info ] $7.49 $5.40 Available to order: Usually ships within 8 days.
#14	F50109	PLUG, GEAR HOUSING (2 required per assembly)
		10-F50109 - Screw -Special [ More info ] $5.20 10+ in stock.
		10-79953A 2 - 10-79953A 2 - SCREW KIT (.375-1 O [ More info ] Unavailable Replaced by 10-79953Q 2
		10-79953Q 2 - 10-79953Q 2 - SCREW KIT (.375-1 O [ More info ] Unavailable Replaced by 10-79953Q04
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $5.80 10+ in stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $2.99 $2.07 10+ in stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $5.80 3 in stock.
#15	F8077	WASHER, GEAR HOUSING PLUG (2 required per assembly)
		F8077 - F8077 - WASHER O [ More info ] Unavailable Replaced by -F8186
		F8186 - F8186 - WASHER O [ More info ] Unavailable Replaced by 12-19183
		12-19183 - 12-19183 - WASHER Fiber O [ More info ] Unavailable Replaced by 12-19183 2
		12-19183 2 - 12-19183 2 - WASHER O [ More info ] Unavailable Replaced by 12-19183 3
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] $1.00 10+ in stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.78 $1.52 10+ in stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $5.10 10+ in stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $5.10 10+ in stock.
#16	F7025	LOCK NUT, 3/8 - 16 (3 required per assembly)
		F7025 - Nut SS [ More info ] $1.85 1 in stock.
		11-68411 - 11-68411 - NUT (.375-16) O [ More info ] Unavailable Replaced by 11-826709 12
		11-826709 12 - Nut - Priced Individually [ More info ] $4.70 10 in stock.
#17	F84215	SPACER (1 required per assembly)
		23-F84215 - Spacer, NLA [ More info ] $7.00 10+ in stock.
#18	F19342	SEAL (1 required per assembly)
		25-F19342 - O-Ring [ More info ] $6.40 $4.32 10+ in stock.
#19	A316554 2	GEAR HOUSING UPPER W/PLUG AND WASHER (1 required per assembly)

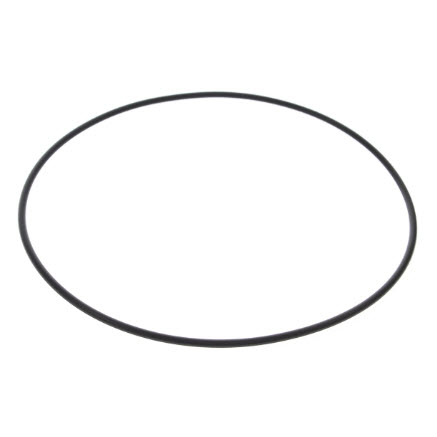

#20	F316555	SEAL (1 required per assembly)
		25-F316555 - O-Ring [ More info ] $9.70 Available to order: Usually ships within 8 days.
#21	F85372	PIN, GEAR SHIFT ROD LOWER (1 required per assembly)
		17-F85372 - Gear Shift Pin [ More info ] $4.40 6 in stock.
#22	F1015	COTTER PIN, S.S. (1 required per assembly)
		18-F1015 - Cotter Pin - Priced Individually [ More info ] $0.80 3 in stock.
#24	F1778	PLAIN WASHER (2 required per assembly)
		12-F1778 - Washer SS [ More info ] $0.44 1 in stock.
		12-45175 - 12-45175 - WASHER (.406 x .7 O [ More info ] Unavailable Replaced by 12-856774
		12-856774 - Washer [ More info ] $1.60 10+ in stock.
#25	F316165	STUD, GEAR HOUSING CENTER (1 required per assembly)
		16-F316165 - STUD O NLA [ More info ] Unavailable
#26	FA84621-1	COUPLING, GEAR SHIFT ARM W/BUSHING (1 required per assembly)
		FA84621-1 - COUPLING O NLA [ More info ] Unavailable
#27	F85006-1	STUD, GEAR HOUSING, FRONT (1 required per assembly)
#28	F316599	SEAL, GEAR HOUSING STUD, FRONT (1 required per assembly)
		25-F316599 - O-Ring [ More info ] $0.40 10+ in stock.
		25-48462 - O-Ring [ More info ] $1.30 1 in stock.

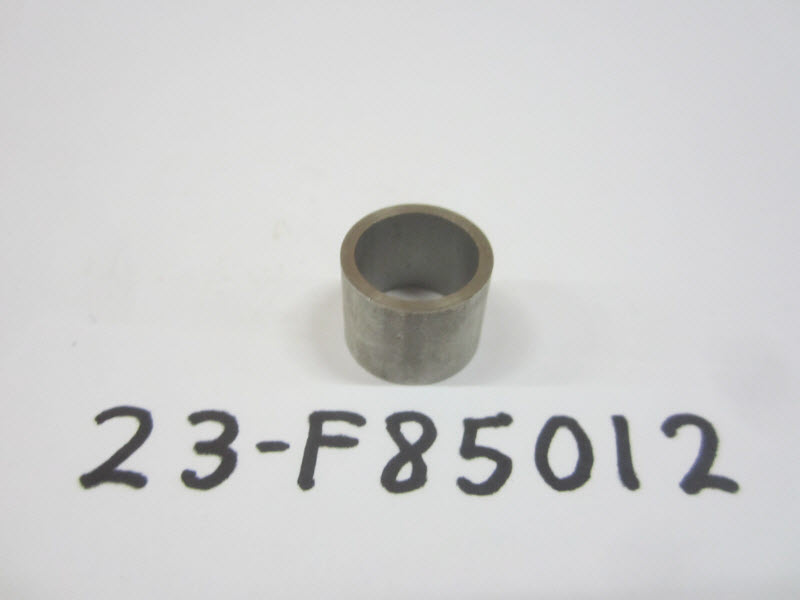

#29	F85012	PILOT, GEAR HOUSING (1 required per assembly)
		23-F85012 - Pilot, NLA [ More info ] $3.75 10+ in stock.
#30	F90891	PIN, GEAR SHIFT ARM (1 required per assembly)
		F90891 - F90891 - PIN-SHIFT PIVOT O [ More info ] Unavailable Replaced by -F498891
		F498891 - F498891 - PIN Gear Shift Ar O [ More info ] Unavailable Replaced by -817468
		817468 - Shift Pivot Pin [ More info ] $4.00 1 in stock.
		826374 - Pin - Retainer [ More info ] $9.30 6 in stock.
#31	F8001	WASHER (1 required per assembly)
		12-F8001 - Washer, NLA [ More info ] $1.60 10+ in stock.
#32	1600-817767A 2	GEAR HOUSING LOWER W/PLUG AND WASHER (1 required per assembly)
		1600-817767A 2 - GEAR HOUSING KIT O NLA [ More info ] Unavailable
#33	FA480188	NUT, BEVEL PINION RETAINING (1 required per assembly)
		FA480188 - FA480188 - NUT-SPECIAL O [ More info ] Unavailable Replaced by 11-F480188
		11-F480188 - NUT-SPECIAL O NLA [ More info ] Unavailable

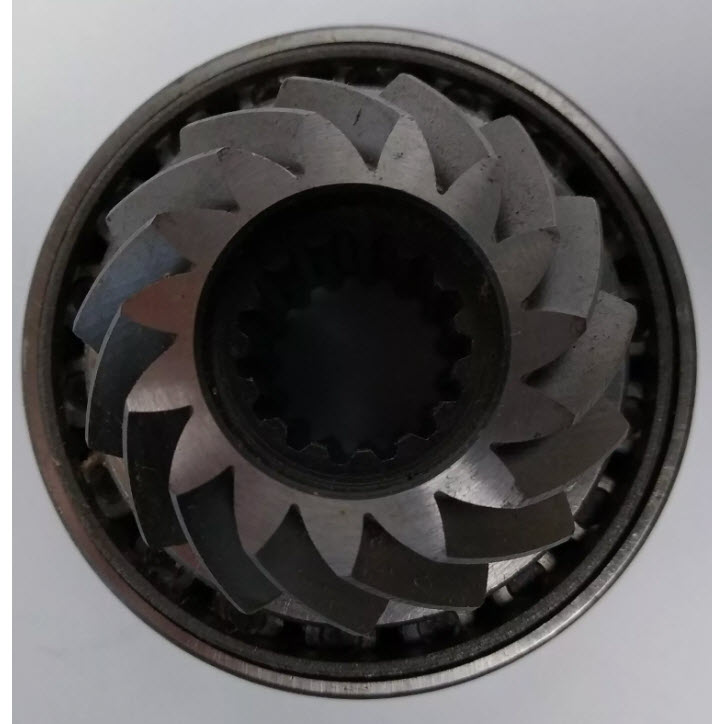

#35	FA481266	BEVEL PINION GEAR W/BEARING (1 required per assembly)
		FA481266 - Pinion Gear Assembly, NLA [ More info ] $220.00 7 in stock.
#36	84903	BEARING CUP (2 required per assembly)
#37	F84008-3	STUD, GEAR HOUSING, REAR (1 required per assembly)
		F84008-3 - F84008-3 - STUD O [ More info ] Unavailable Replaced by 16-F84008-4
		16-F84008-4 - Stud, NLA [ More info ] $25.00 9 in stock.

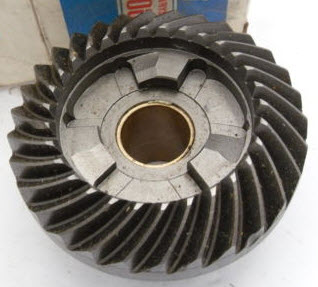

#38	F2A481023	BEVEL GEAR FRONT W/BEARINGS (1 required per assembly)
		43-F2A481023 - Gear Assembly - Front, NLA [ More info ] $320.00 10+ in stock.

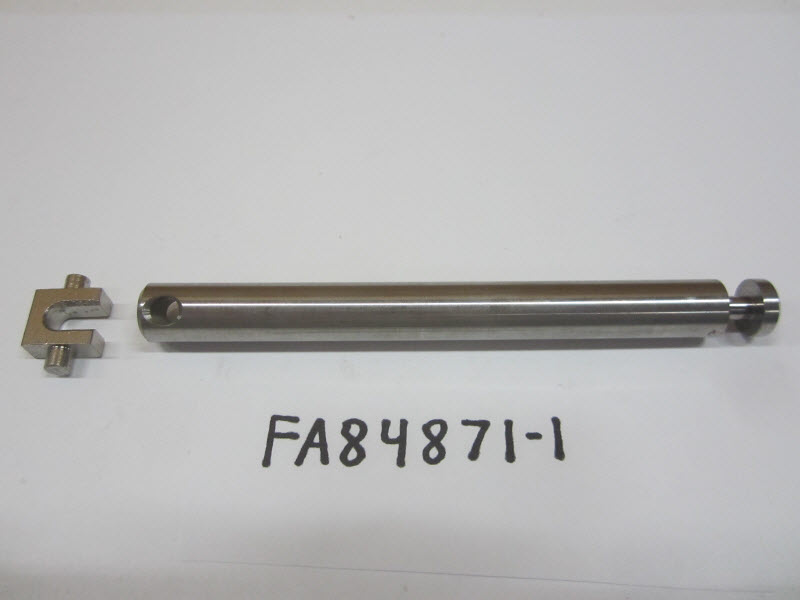

#40	FA84871	PIN, GEAR SHIFT W/YOKE (1 required per assembly)
		FA84871 - FA84871 - PIN & YOKE O [ More info ] Unavailable Replaced by -FA84871-1
		FA84871-1 - Pin & Yoke, NLA [ More info ] $40.00 10 in stock.
#41	F84521-1	CLUTCH (1 required per assembly)
		F84521-1 - F84521-1 - CLUTCH O [ More info ] Unavailable Replaced by 52-816433
		52-816433 - 52-816433 - CLUTCH O [ More info ] Unavailable Replaced by 52-816433T
		52-816433T - Clutch [ More info ] $266.08 Available to order: Usually ships within 8 days.
#42	F1713	SPRING PIN (1 required per assembly)
		F1713 - F1713 - PIN Spring O [ More info ] Unavailable Replaced by 17-F2419
		17-F2419 - Spring Pin [ More info ] $0.60 10+ in stock.
		17-8M0029889 - Pin -roll [ More info ] $1.60 10+ in stock.
#43	A85098 2	PROPELLER SHAFT (1 required per assembly)

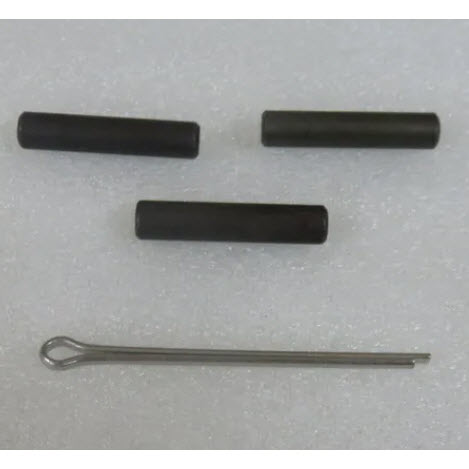

#44	FK280	PROPELLER PIN (1 required per assembly)
		FK280 - Pin Kit, NLA [ More info ] $14.00 8 in stock.

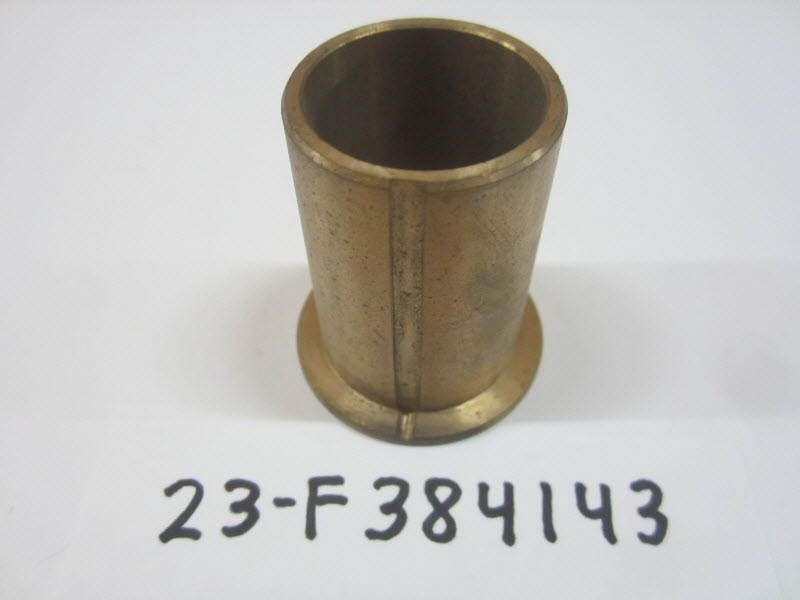

#45	F384143	BEARING, BEVEL GEAR REAR (1 required per assembly)
		23-F384143 - Bearing, NLA [ More info ] $30.00 10+ in stock.
#46	F481662	BEVEL GEAR, REAR (1 required per assembly)
		43-F481662 - Rear Gear [ More info ] $235.00 1 in stock.

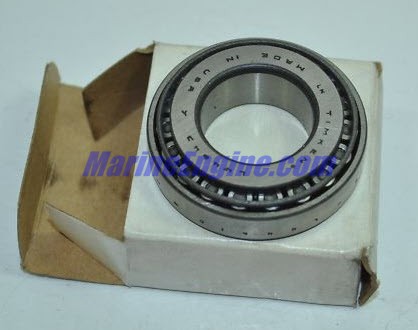

#47	FA84225	BEARING W/CUP (1 required per assembly)
		FA84225 - FA84225 - BEARING/CUP KIT O [ More info ] Unavailable Replaced by 31-77420A 1
		31-77420A 1 - Bearing Kit [ More info ] $39.10 $33.48 2 in stock.
#48	84250	BEARING CUP (1 required per assembly)
#50	F84305	SEAL, PROPELLER SHAFT BEARING CAGE (1 required per assembly)
		25-F84305 - 25-F84305 - SEAL O [ More info ] Unavailable Replaced by 25-32507
		25-32507 - O-Ring - Priced Individually [ More info ] $3.70 10+ in stock.
		18-7127 - O-Ring 313446 [ More info ] $3.99 $2.54 1 in stock.
#51	F84118	SEAL, PROPELLER SHAFT (1 required per assembly)
		26-F84118 - Seal [ More info ] $31.08 Available to order: Usually ships within 8 days.
#52	FA84298-3	PROPELLER SHAFT BEARING CAGE (1 required per assembly) W/ITEM 51
		FA84298-3 - CAGE ASSY-GR HSG O NLA [ More info ] Unavailable
#53	FP372	PROPELLER (ACCESSORY ITEM) FOR 75 H.P. ENGINES (1 required per assembly)
		FP372 - ALUM 13.00X17.00 O NLA [ More info ] Unavailable
#	FP383	PROPELLER (ACCESSORY ITEM) FOR 90 H.P. ENGINES (1 required per assembly)
		FP383 - ALUM 13.00X19.00 O NLA [ More info ] Unavailable
#54	F40342	SEAL, PROPELLER NUT (1 required per assembly)
		25-F40342 - Seal [ More info ] $0.85 10+ in stock.
		25-20195 - 25-20195 - O-RING O [ More info ] Unavailable Replaced by 25-20195 1
		25-20195 1 - O-Ring [ More info ] $1.30 Available to order: Usually ships within 8 days.
		18-7134-9 - O-Ring (PK5) 339543 [ More info ] $9.95 $5.85 5 in stock.

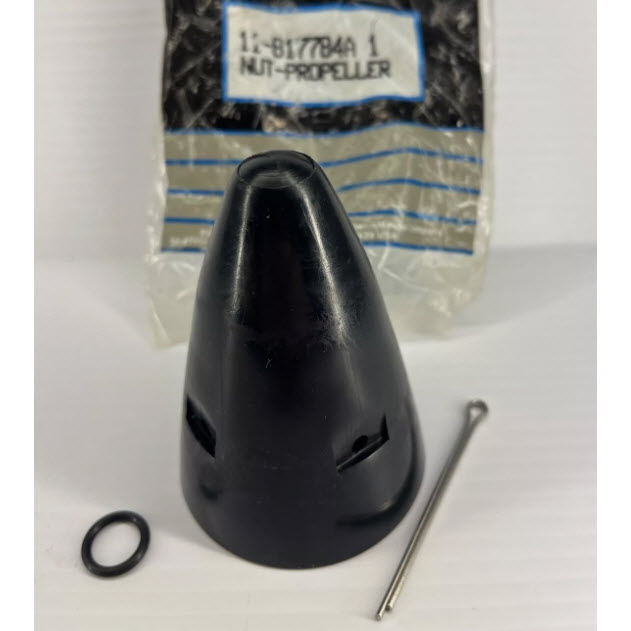

#55	11-817784A 1	PROPELLER NUT W/COTTER PIN AND SEAL (1 required per assembly)
		11-817784A 1 - Prop Nut Kit, NLA [ More info ] $77.52 5 in stock.
#56	F1028	COTTER PIN, S.S. (1 required per assembly)
		18-F1028 - Cotter Pin, NLA [ More info ] $2.50 10+ in stock.

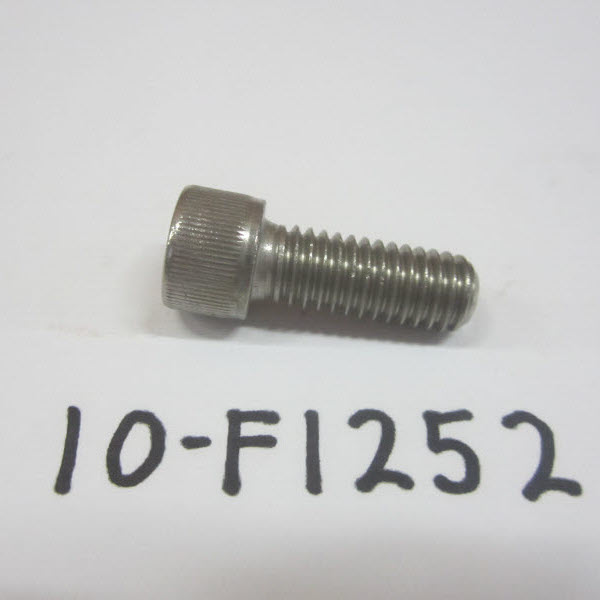

#57	F1252	HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 1 (2 required per assembly)
		10-F1252 - Screw -ss, NLA [ More info ] $3.00 10+ in stock.
#58	F1705	HEX CAP SCREW, S.S., 1/4 - 20 X 3/4 (2 required per assembly)
		F1705 - F1705 - SCREW (.250-20 x O [ More info ] Unavailable Replaced by 10-28636
		10-28636 - Screw - Priced Individually [ More info ] $1.40 10+ in stock.
#59	F85117	BRACKET, WATER LINE (1 required per assembly)
		F85117 -Waterline Bracket [ More info ] $3.00 4 in stock.
		F692117 - BRACKET O NLA [ More info ] Unavailable
#60	F84342	SEAL, INLET WATER LINE, UPPER (1 required per assembly)
		25-F84342 - Water Line Seal [ More info ] $10.00 Available to order: Usually ships within 8 days.
#61	F381899	GROMMET, WATER LINE (1 required per assembly)
		25-F381899 - GROMMET O NLA [ More info ] Unavailable
#64	F9038	DRIVE KEY, WATER PUMP (1 required per assembly)
		28-F9038 - Key [ More info ] $7.80 $2.50 10+ in stock.
#65	F8096	SPRING LOCKWASHER, S.S. (7 required per assembly)
		F8096 - F8096 - LOCKWASHER (.312) O [ More info ] Unavailable Replaced by 13-53166
		13-53166 - LockWasher - Priced Individually [ More info ] $1.40 10+ in stock.
#66	F1696	HEX BOLT, S.S., 5/16 - 18 X 1 3/4 (6 required per assembly)
		10-F1696 - 10-F1696 - SCREW (.312 - 18 O [ More info ] Unavailable Replaced by 10-69267
		10-69267 - Screw [ More info ] $1.90 Available to order: Usually ships within 8 days.
#67	F438116-1	EXHAUST OUTLET, GEAR HOUSING UPPER W/SCREW (1 required per assembly)
		F438116-1 - Snout [ More info ] $45.49 1 in stock.
		817797A 2 - Snout Kit, NLA [ More info ] $80.00 1 in stock.
#68	F1907	PLAIN WASHER (1 required per assembly)
		F1907 - Washer SS [ More info ] $0.25 1 in stock.
		12-12038 - Washer [ More info ] $1.60 5 in stock.
#69	F1994	HEX SOCKET HD CAP SCREW, 5/16 - 18 X 1 (1 required per assembly)
		10-F1994 - Screw-SS [ More info ] $1.35 10+ in stock.
		10-90073 - Screw [ More info ] $1.36 6 in stock.
#70	F438077	SCREEN, WATER INLET (1 required per assembly)
		F438077 - SCREEN O NLA [ More info ] Unavailable
#71	F438930	RETAINER, SNOUT (1 required per assembly)
		10-F438930 - Screw [ More info ] $4.85 6 in stock.
		10-826377 - Screw [ More info ] $19.25 1 in stock.
#72	F84717	THRUST WASHER, BEVEL GEAR, REAR (1 required per assembly)
		12-F84717 - Washer, NLA [ More info ] $5.00 10+ in stock.
#73	F1213	HEX CAP SCREW, 5/16 - 18 X 1 1/8 (1 required per assembly)
		10-F1213 - Screw -ss, NLA [ More info ] $1.80 10+ in stock.
#74	F480388	DISC, WATER PUMP LOCATING (1 required per assembly)
		12-F480388 - Washer [ More info ] $4.20 Available to order: Usually ships within 8 days.
#	FC481054	*GEAR HOUSING COMPLETE. INCLUDES ALL ITEMS MARKED WITH AN ASTERISK ().**
		FC481054 - GEAR HOUSING ASSY O NLA [ More info ] Unavailable
#23	F85705-1	GEAR SHIFT ROD LOWER
		F85705-1 - Gear Shift Rod, NLA [ More info ] $20.00 2 in stock.
#62	F85244	INLET WATER LINE
		32-F85244 - HOSE O NLA [ More info ] Unavailable
#63	FK85128-1	DRIVESHAFT W/ITEMS 4, 12 & 33
#23	F304705-1	GEAR SHIFT ROD LOWER
		F304705-1 - ROD-SHIFT O NLA [ More info ] Unavailable
#62	F304244	INLET WATER LINE
		F304244 - WATERLINE O NLA [ More info ] Unavailable
#63	K304128 1	DRIVESHAFT W/ITEMS 4, 12 & 33
