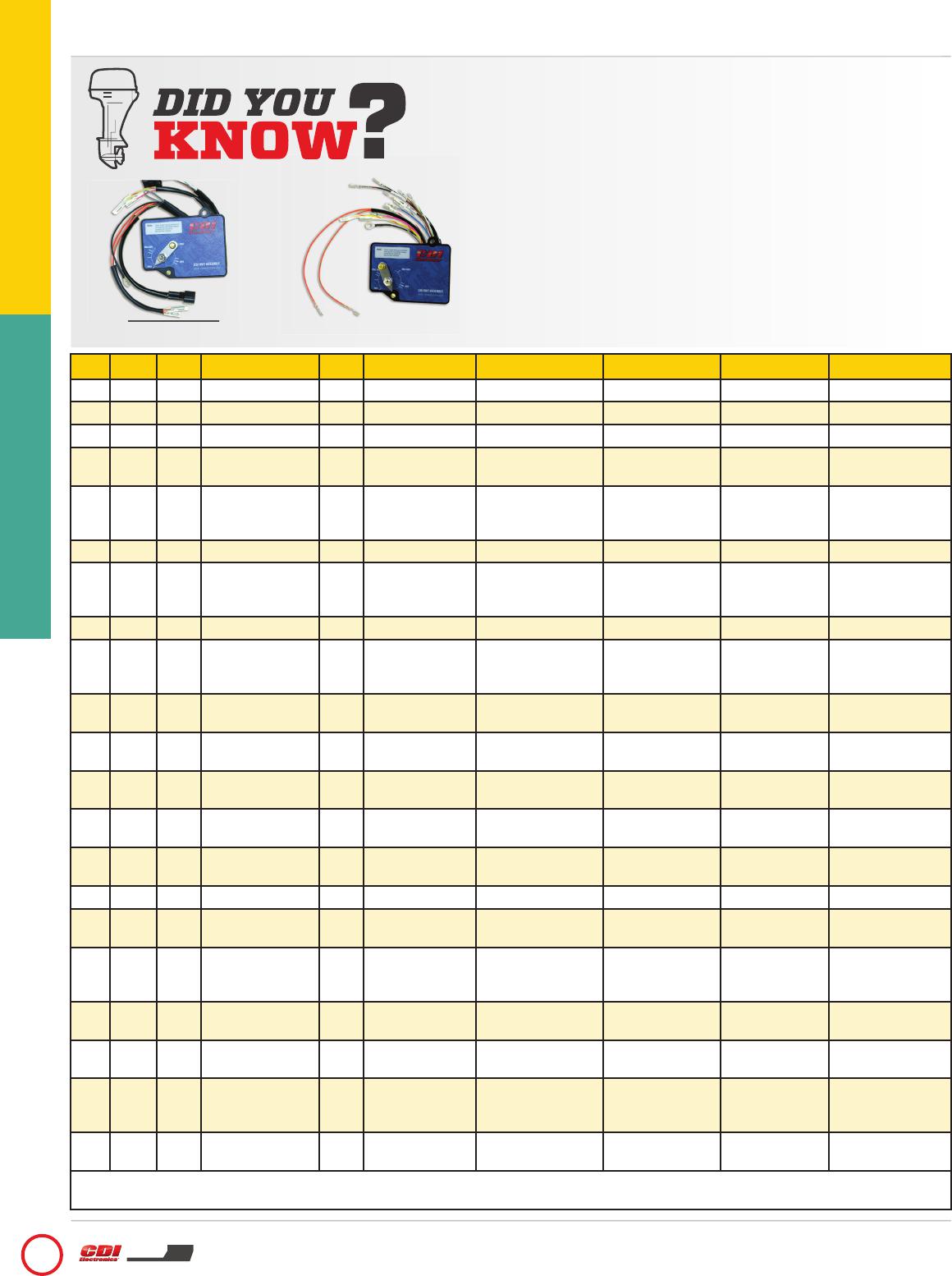

Application Charts (2 HP - 20 HP)

134
16
2015
CATALOG BETTER THAN THE OEM
Yamaha
Yamaha
HP Year Stk. Model Cyl. Ign. Pack Stator Trigger Rectifier Ign. Coil
2 95-99 2 MSH 1 R6A1-85540-01-00 R6A1-85520-00-00* SelfTriggered - 6A1-85570-00-00**
2 2000 2 MSH 1 R6A1-85540-01-00 R6A1-85520-00-00* SelfTriggered - 6A1-85570-00-00**
2.5 03-05 4 F2.5, ML, MS 1 69M-85640-00-00** - SelfTriggered - In CD
3 88-02 2 LD, LF, LG, ML, MS,
SD, SF, SG
1 R6L5-85540-M0-00 R6E0-85520-70-00* R6L5-85592-M0*(A)
R6L0-85595-M0*(B)
- 6L5-85570-M-00**
4 84-01 2 LD, LF, LG, LK, LN,
ML, MS,SD,
SF, SG, SK, SN
1 117-6E0-71 R6E0-85520-70-00*(C)
R6E0-81303-80-00*(D)
6E0-85592-70*(A)
6E0-85595-70*(B)
157-664-61 6E0-85570-21-00**
4 99-05 4 F4, ML, MS 1 67D-85640-00-00** - Self Triggered - In CD
5 84-01 2 LD, LF,LG, LK, LN,
ML, MS, SD, SF, SG,
SK, SN
1 117-6E0-71 R6E0-85520-70-00*(C)
R6E0-81303-80-00*(D)
R6E0-85592-70*(A)
R6E0-85595-70*(B)
157-664-61 6E0-85570-21-00**
5 99-05 4 F5, ML, MS 1 67D-85640-00-00** - Self Triggered - In CD
6 84-99 2 LD, LF,LG, LK, LN,
ML, MS, SD, SF, SG,
SK, SN
2 117-696-12 R6E7-85520-70-00*(C)
R6E7-81303-A0*(D)
R6E0-85580-70-00* 157-664-6 6G1-85570-00-00**
6 01-05 4 F6, ML, MS 2 68R-85540-00-00** R68T-85520-00-00*(C)
R68T-85533-00-00*(D)
68T-85580-01-00** 68T-81960-00-00* 680-85570-01-00**
8 84-04 2 LD,LF,LG,LK,LN,ML,
MS,SD,SF,SG,SK,SN
2 117-696-12 R6E7-85520-70-00*(C)
R6E7-81303-A0-00*(D)
R6E0-85580-70-00* 157-664-61 6G1-85570-00-00**
8 01-05 4 F8,ML,MS 2 68T-85540-00-00** R68T-85520-00-00*(C)
R68T-85533-10-00*(D)
68T-85580-01-00** 68T-81960-00-00** 680-85570-01-00**
9.9 84-95 2 EL, ES, LH, LJ, LK,
LN, SH, SJ, SK, SN
2 117-695-11 R6E7-85520-70-00*(C)
R6E7-81303-A0-00*(D)
6E0-85580-70-00** 157-664-61 6G1-85570-00-00**
9.9 86-04 4 F9.9, EL, ER, EX, X,
ML, MX
2 117-6921 R6G8-85520-00-00*(C)
R6G9-81303-F0-00*(D)
6G8-85580-02-00** 6G8-81960-A1-00** 680-85570-21-00**
9.9 92-05 4 T9.9, EL, EX 2 117-6921 R6G8-85520-01-00*(C) 68T-85580-02-00** 6G8-81960-A1-00** 680-85570-21-00**
9.9 96-05 2 EL, ES, ML, MS, X,
ML, MX
2 117-6301 R63V-85520-01-00*(C)
R6G8-81303-J0-00*(D)
63V-85580-01-00** 6G8-81960-A1-00** 63V-85570-00-00**
9.9 2005 4 F9.9, ELR2D,
MLH2D, MLR2D,
MSH2D
2 66M-85540-01-00** R66M-85520-00-00*(C)
R66M-85533-00-00*(D)
R66M-85533-10-00*(E)
66M-85580-00-00** 6G8-81960-A1-00** 66M-85570-00-00**
15 84-95 2 EL, ES, LH, LJ, LK,
LN, SH, SJ, SK, SN
2 117-695-11 R6E7-85520-70-00*(C)
R6E7-81303-A0-00*(D)
R6E0-85580-70-00* 157-664-61 6G1-85570-00-00**
15 96-05 2 EL, ES, ML, MS 2 117-6301 R63V-85520-01*(C)
R63V-85533-00*(D)
63V-85580-01-00** 6G8-81960-A1-00** 63V-85570-00-00**
15 98-05 4 F15, EL, ES, ML,
MS, PL
2 66M-85540-01-00** R66M-85520-00*(C)
R66M-85533-00*(D)
R66M-85533-10*(E)
66M-85580-00-00** 6G8-81960-A1-00** 66M-85570-00-00**
20 94-05 2 EL, ES, ML, MS 2 R6L2-85540-10-00 R6L2-85520-11*(C)
R6L2-85533-10*(D)
6L2-85580-10-00**
6L2-85580-20-00**
157-664-61 61N-85570-10-00**
(a) Low Speed (b) High Speed (c) Charge Coil (d) Lighting Coil (e) 10 Amp Lighting Coil (f) Manual Start (g) Electric Start (h) Blanking Coil
* Premier Services Availability Only ** Part Currently Unavailable by CDI Electronics at this time
Application Charts
Some Yamaha Ignition Packs are a
high failure component on what is
otherwise, a very reliable motor.
To address this failure, CDI Electronics has redesigned
the Ignition Packs (117-63D-04 & 117-6H5-02) to elimi-
nate the water intrusion and wear mechanisms that
plagued the original design.
By utilizing new technology, the design is more robust
and easier to install. * See pages 130 & 131.
