OMC V8-283, 305, 307 & 350 C.I.D.

Models 210, 215, 225, 235 & 245 HP: Log style generic

OMC V8-283, 305, 307 & 350 C.I.D.

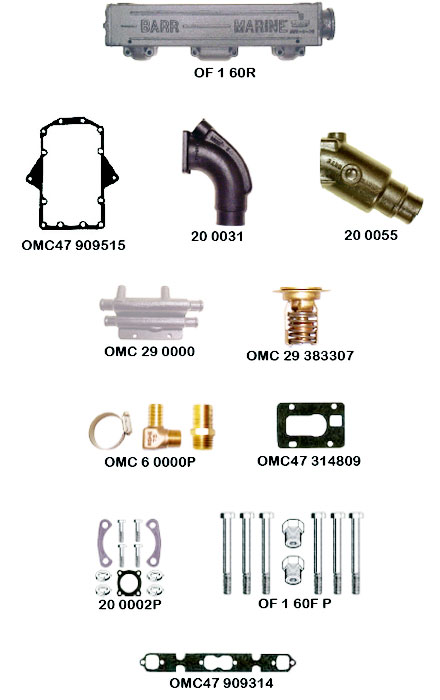

Part Number Description
OF-1-60L Water cooled end discharge port manifold to fit the small block GM engine (1/2" N.P.T. cooling hose connections).
OF-1-60R Water cooled end discharge starboard manifold to fit the small block GM engine (1/2" N.P.T. cooling hose connections).
20-0031 Swivel-type 90-degree exhaust elbow connector with internal water discharge. Accepts 2-1/2" to 3" I.D. exhaust hose. Requires one (1) mounting hardware kit 20-0002P per elbow.
20-0055 Swivel-type 30-degree exhaust elbow connector; fully jacketed. Accepts 2-1/2" or 3" I.D. exhaust hose. Requires one (1) mounting hardware kit 20-0002P per elbow.
20-0002P Mounting hardware kit.
OF-1-60F-P Manifold to cylinder head mounting package.
OMC-6-0000P Plumbing fittings package (3/4" I.D. hose only).
OMC-29-0000 Upper thermostat housing. Replaces OMC part numbers 314810 and 982201 (may also order under part numbers OMC-29-314810 or OMC-29-982201).
OMC-29-383307 160-degree thermostat.
OMC47-314809 Thermostat housing gasket.
OMC47-909314 Exhaust manifold to cylinder head gasket.
OMC47-909515 Adaptor housing gasket.
