Interceptor V8-239, 256, 272, 292 & 312 C.I.D.

Models 125, 135, 150, 170, 185 & 215 HP: Log style generic

Interceptor V8-239, 256, 272, 292 & 312 C.I.D.

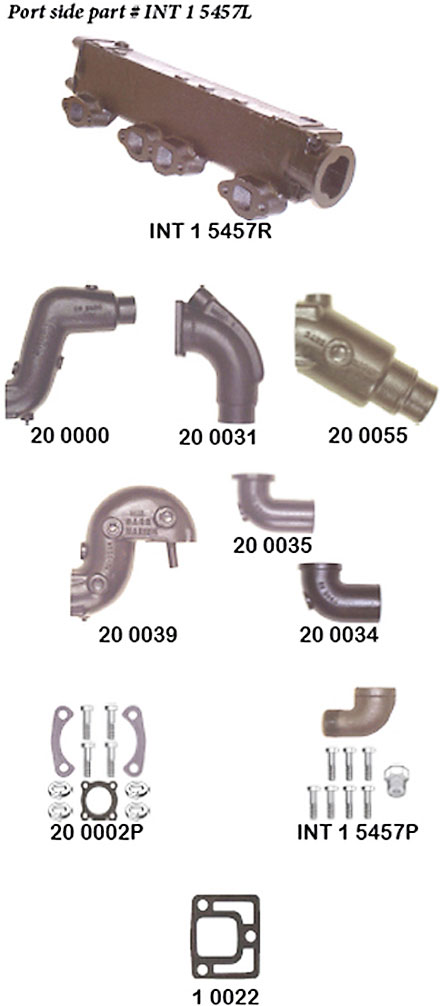

Part Number Description
INT-1-5457L Water cooled exhaust manifold (port side) for the Ford engine.
INT-1-5457R Water cooled exhaust manifold (starboard) for the Ford engine. Use with Barr risers and exhaust connectors. The original Interceptor exhaust connectors are not applicable to the Barr manifolds.
1-0022 End plate gasket (will fit both ends).
INT-1-5457P Manifold to cylinder head mounting kit.
20-0000 Swivel-type high discharge exhaust riser; 8-1/2" riser protection. Requires one (1) mounting hardware kit 20-0002P per riser. Use only with 2-7/8" to 3" I.D. exhasut hose.
20-0002P Mounting hardware kit (Barr style riser/elbows only).
20-0031 Swivel-type 90-degree exhaust elbow connector with internal water discharge. Accepts 2-1/2" to 3" I.D. exhaust hose. Requires one (1) mounting hardware kit 20-0002P per elbow.
20-0034 or 20-0035 Exhaust connector 20-0035 (for 2-1/2" I.D. exhaust hose) or exhaust connector 20-0034 (for 3" I.D. exhaust hose). Connects to 20-0039 using one (1) 20-0002P per connector.
20-0039 Fully jacketed swivel-type exhaust riser; 7" riser protection. Requires two (2) mounting hardware kits 20-0002P one (1) kit to mount riser to manifold and one (1) kit to mount elbows 20-0034 or 20-0035 to riser.
20-0055 Swivel-type 30-degree exhaust elbow connector; fully jacketed. Accepts 2-1/2" or 3" I.D. exhaust hose. Requires one (1) mounting hardware kit 20-0002P per elbow.
