Interceptor V8-221, 260 & 289 C.I.D.

Models 120, 140, 165, 190, 200 & 210 HP: Log style generic

Interceptor V8-221, 260 & 289 C.I.D.

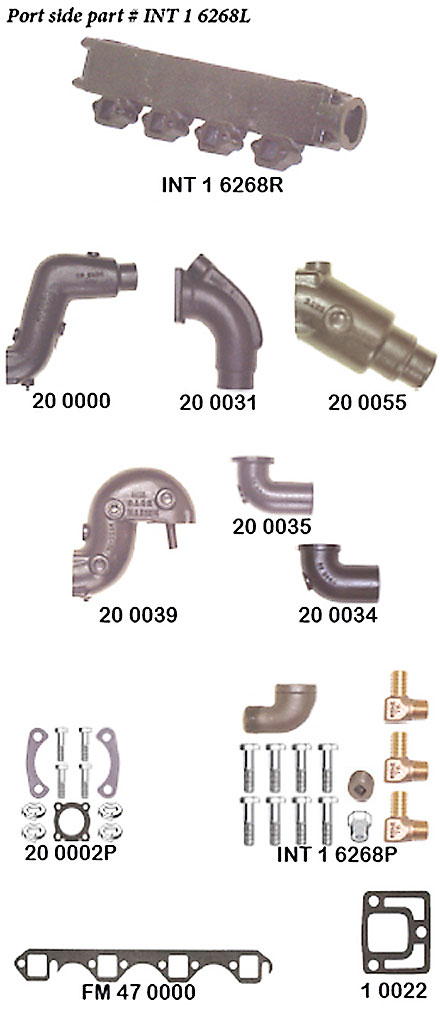

Part Number Description
INT-1-6268L Water cooled exhaust manifold (port) for the Ford engine. Use with Barr risers and connectors. The original Interceptor exhaust connectors are not applicable to the Barr manifolds.
INT-1-6268R Water cooled exhaust manfold (starboard) for the Ford engine. Use with the Barr risers and connectors. The original Interceptor exhaust connectors are not applicable to the Barr manifolds.
1-0022 End plate gasket (will fit both ends).
INT-1-6268P Manifold to cylinder head mounting kit.
20-0000 Swivel-type high discharge exhaust riser; 8-1/2" riser protection. Requires one (1) mounting hardware kit 20-0002P per riser. Use only with 2-7/8" to 3" I.D. exhaust hose.
20-0002P Mounting hardware kit (Barr style riser/elbows only).
20-0031 Swivel-type 90-degree exhaust elbow connector with internal water discharge. Accepts 2-1/2" to 3" I.D. exhaust hose. Requires one (1) mounting hardware kit 20-0002P per elbow.
20-0034 or 20-0035 Exhaust connector 20-0035 (for 2-1/2" I.D. exhaust hose) or exhaust connector 20-0034 (for 3" I.D. exhaust hose). Connects to 20-0039 using one (1) 20-0002P per connector.
20-0039 Fully jacketed swivel-type exhaust riser; 7" riser protection. Requires two (2) mounting hardware kits 20-0002P one (1) kit to mount riser to manifold and one (1) kit to mount elbows 20-0034 or 20-0035 to riser.
20-0055 Swivel-type 30-degree exhaust elbow connector; fully jacketed. Accepts 2-1/2" or 3" I.D. exhaust hose. Requires one (1) mounting hardware kit 20-0002P per elbow.
