Crusader V8-283, 305, 307, 327 & 350 C.I.D.

Center riser direct replacement

Crusader V8-283, 305, 307, 327 & 350 C.I.D.

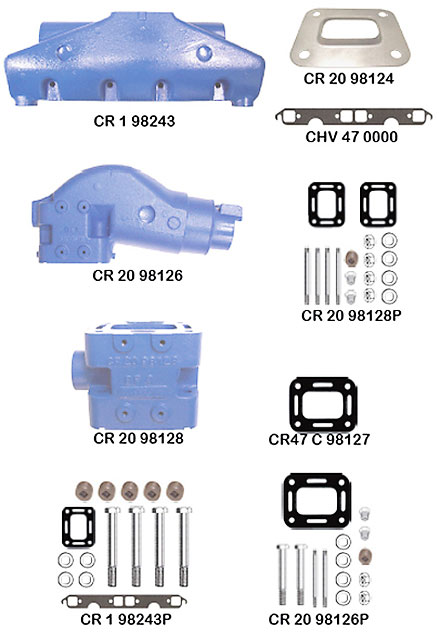

Part Number Description
CR-1-98243 Direct replacement water cooled exhaust manifold. Replaces Crusader part number 98243.
CR-20-98216 Direct replacement water cooled center discharge riser. Replaces Crusader part number 98126. Accepts 4" I.D. exhaust hose.
CR-20-98128 Manifold to riser 3" spacer block (single). Replaces Crusader part number 98128.
CHV-47-0000 Manifold to cylinder head gasket.
CR-1-98243P Mounting package for CR-1-98243.
CR-20-98124 Stainless steel block off plate for closed cooling applications.
CR-20-98126P Mounting package for CR-20-98126 riser.
CR-20-98128P Mounting package for CR-20-98128 spacer.
CR47-C-98127 Direct replacement manifold to riser gasket.
Note
Manifold, riser and spacer block include all mounting hardware, gaskets and plugs.

The center riser is a two-piece aluminum manifold/riser ideally suited for replacement use where riser protection is required. The Barr center riser aluminum manifold/riser uses flexible exhaust hose which facilitates connection to existing exhaust lines.

All elbows (cast iron) can swivel inboard or outboard for perfect fit. The Barr center riser aluminum manifold/riser is designed to limit back presure on the engine, resulting in more efficient engine performance. The manifold and riser can be reversed and will fit either side of the engine.

The Barr center riser aluminum manifold/riser is cast of 356 T6 aluminum, well suited for fresh water marine applications. Barr Marine's center riser aluminum manifold/riser come with a one year warranty. However, Barr Marine By EDM does not recommend use of this product in salt water applications and does not warrant this product in salt water due to extreme corrosion.
