Chrysler V8-273, 318, 340 & 360 C.I.D.

All models 1986 & later: Center riser direct replacement

Chrysler V8-273, 318, 340 & 360 C.I.D.

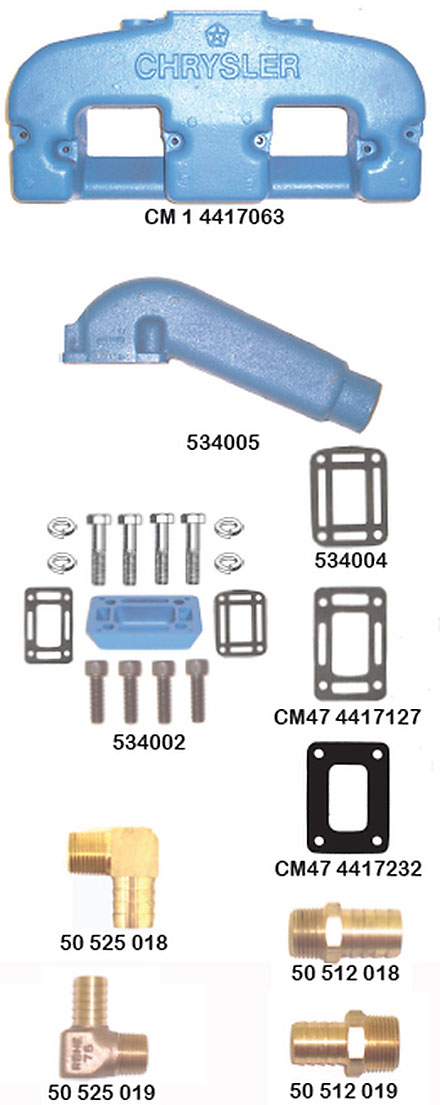

Part Number Description
CM-1-4417063 Water cooled center discharge exhaust manifold to fit the small block Chrysler (1/2" N.P.T. cooling hose connections). Used during years 1986 and later.
534005 Generic riser designed to be mounted to the original Chrysler center riser exhaust manifold (for use with 3" I.D. exhaust hose 3/4" N.P.T. cooling hose connection).
534002 Adaptor kit (sold as shown) to fit the original Chrysler center riser exhaust manifold to the Barr style riser (534005). Adaptor must be used for CM-1-4417063 Barr style riser.
534004 Riser gasket for raw water cooled manifolds (installed between manifold and adaptor plate).
50-512-018 1/2" N.P.T. X 3/4" hose (straight barb) brass fitting.
50-512-019 3/4" N.P.T. X 3/4" hose (straight barb) brass fitting.
50-525-018 1/2" N.P.T. X 3/4" hose (90-degree) brass fitting
50-525-019 3/4" N.P.T. X 3/4" hose (90-degree) brass fitting.
CM47-4417127 Riser gasket for raw water cooled manifolds (installed between adaptor 534005 plate and riser).
CM47-4417232 Riser gasket for fresh water cooled manifolds (installed between manifold and adaptor plate).
Note
Manifold includes all mounting hardware, gaskets and plugs.
