TELHC5801-2 - Power Steering Cylinder Kit 2\" x 9\" Stroke

HC5801-2 Power Steering Cylinder Kit 2" x 9" Stroke

These power steering cylinders use the ship’s engine(s) to provide the “power” for the steering system, via an engine or electric motor driven hydraulic pump. Features effortless steering from docking to top speed.

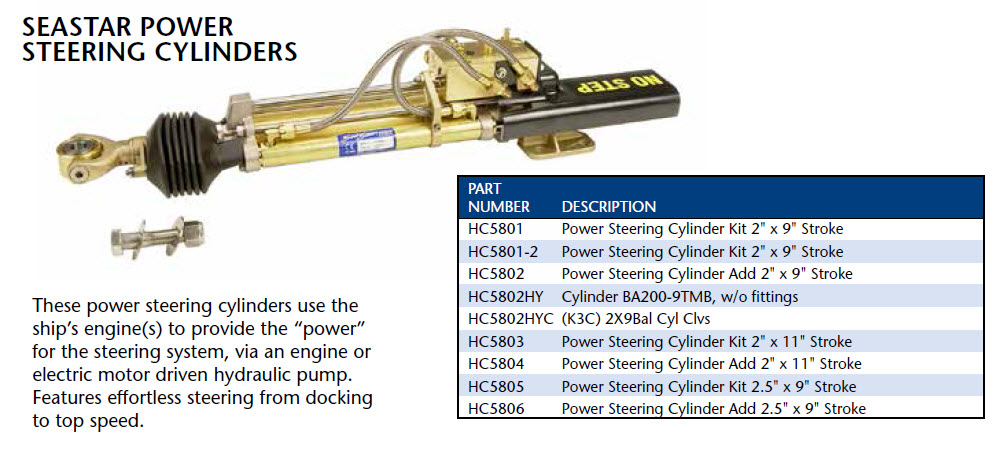

PLEASE NOTE: The ends of the HC5801 and HC5801-2 are the Heim Joint Connection and NOT the swivel yoke connection as shown in the photo. This photo is the only one that Teleflex provides, but the end connection is different for the HC5801 and HC5801-2

Seal kit for Main cylinder BA200-9, part number HS5198. Seal kit for Servo cylinder, part number HS5197

CYLINDER MODEL (PART No.): PSC200-9 (HC5801/HC5801-2)
BORE DIA In (mm): 2.00 (32.77)
NOMINAL SHAFT DIA In (mm): 1.00 (25.4)
STROKE In (mm): 9 (229)
SEAL KIT: See Notes
VOLUME Cubic In (cc): 21.25 (345)
TORQUE In-lb (kg-m): 18,900 (2130)
NOTES: 3 Kits Required HS5196/HS5197/HS5198
