113-4986 - OMC Optical Power Pack - See Important Notes on Detail Page
Replaces OEM #0584986.

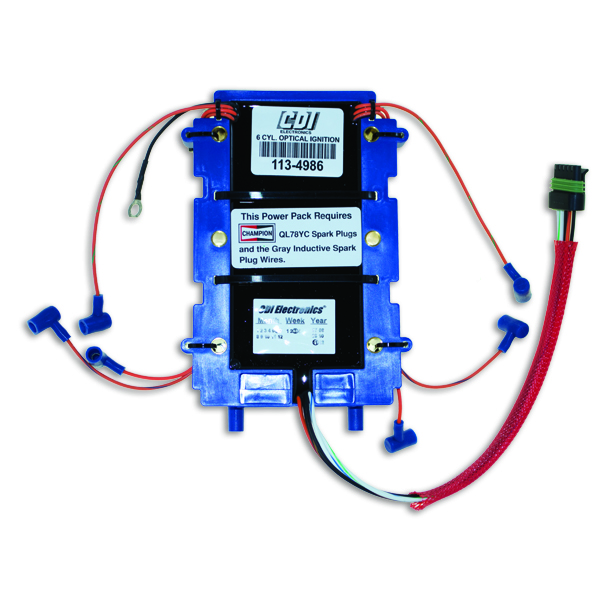

113-4986 6 Cylinder Digital Optical Power Pack
NOTE: This is for the Quite rider series with longer wires due to power pack mounting location.
Fits 1992-2006 150 and 175 HP 60 Degree Optical (OIS 2000) Carbureted Engines. Digitally controlled CD has a 6100 RPM Limiter (Pro Series has 7500, 8500 and 10,000 RPM Limits Available).
Replaces: 584986, 584988, 584991, 584989, 584912.
SERVICE NOTE: The 6 cylinder Optical ignition packs REQUIRES the Factory Recommended Champion QL78YC Spark Plugs AND the Grey sleeved stator (584981 or 173-4981) for warranty coverage.
DO NOT OPERATE WITH A BLACK SLEEVED STATOR FROM A 1991-92 MODEL ENGINE. DO NOT OPERATE ENGINE WITH PLASTIC ENCODER COVER OFF OF THE ENGINE.
See tech info link for other important information.
CDI Electronics Omc Power Pack - 6 Cyl. is equivalent to parts:
- 584989 Evinrude Johnson OMC BRP
- 584988 Evinrude Johnson OMC BRP
- 584986 Evinrude Johnson OMC BRP
Additional information about this part can be found on page(s) 50 of the CDI Electronics catalog.
