6274 - Tilt Trim Motors

Arco Marine 6274 - Tilt Trim Motors

List Price

Your Price
$303.95

Add to shopping cartIn stock Explain stock levels

Part Number
6274

Manufacturer
Arco Marine

Replaces OEM 0778995.

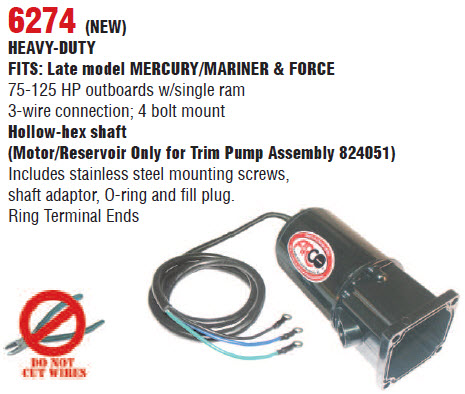

ARCO NEW Original Equipment Quality Replacement Tilt Trim Motor - 6274

ARCO Part #6274

Fits: Late model Mercury /Mariner & Force 75-125 HP outboards w/single ram 3-wire connection; 4-bolt mount, Hollow-hex shaft (Motor/Reservoir Only for Trim Pump Assembly 824051) Includes stainless steel mounting screws, shaft adaptor, O-ring and fill plug. Ring Terminal Ends.

Replaces Part Numbers:
MERCURY 824051
MERCURY 830250A6


QUALITY ASSURANCE
• Epoxy Powder coated for maximum corrosion protection
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
PRECISION TESTING
• All armatures tested to withstand 50 times operation voltage (12V)
• All motors performance tested at 5 different load levels
• All motors must meet or exceed OEM performance before being boxed
ARCO Marine is a USA based manufacturer

Technical information (PDF)
Warranty (PDF)
Enlarge photo
More photos


Arco Marine Tilt/trim Motor is equivalent to parts:

ARCO is a leading supplier of electrical products for marine engines including inboard/outboard starters, trim/tilt motors, alternators, solenoids, rectifiers and more. All of ARCO's parts are built to meet or exceed OEM qualifications.
